Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | FMP57-AAACCALCA4AJJ+LA |
Product Details
Process Temperature:
-40...+150 °C
Process Pressure / Max. Overpressure Limit:
Vacuum...16 Bar
Ambient Temperature:
-40...+80 °C
Rod Probe:
316Ti, 316L, PEEK, PPS
Highlight:
16 Bar E&H Instrument
,FMP57 E&H Instrument
,Guided Radar Measurement
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
Product Description

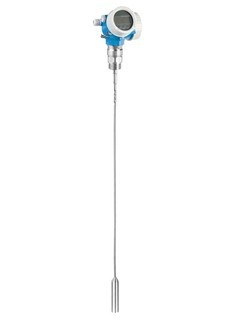

Guided radar measurement Time-of-Flight Levelflex FMP57 FMP57-AAACCALCA4AJJ+LA
| Ambient temperature | -40...+80 °C |
| Process temperature | -40...+150 °C |
| Process pressure / max | Vacuum...16 bar |
Specs at a glance
- Accuracy
Rod probe: +/- 2 mm (0.08 in)
Rope probe <= 15 m (49ft): +/- 2 mm (0.08 in)
Rope probe > 15 m (49ft): +/- 10 mm (0,39 in) - Process temperature
-40...+150 °C (-40...+302 °F) - Process pressure / max. overpressure limit
Vacuum...16 bar (Vacuum...232 psi) - Max. measurement distance
Rod: 4 m (13 ft) Min DK>1.4
Rope: 20 m...25 m (66 ft...82 ft) Min DK >1.4;
25 m...30 m (82ft...98 ft) Min DK >1.6;
30 m...45 m (98ft...148 ft) Min DK>1,9 - Main wetted parts
Rod probe: 316Ti, 316L, PEEK, PPS
Rope probe: 304, 316, 316Ti, 316L, PEEK, PPS, PA
Field of application
Levelflex FMP57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. Providing rope probes up to a length of 45m the FMP57 is also suited to measurements in high silos. Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
Version with rod or rope probe.
- Process connections: Thread or flange
- Temperature: -40 to +150°C (-40 to +302°F)
- Pressure: -1 to +16bar (-14.5 to +232psi)
- Maximum measuring range: Rod 4m (13ft), rope 45m (148ft)
- Accuracy: ±2mm (0.08")
- International explosion protection certificates, SIL, marine approval, 5-point linearity protocol
Benefits
- Reliable measurement even for changing product and process conditions
- HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
- Highest reliability due to new Multi-Echo Tracking evaluation
- Hardware and software developed according to IEC 61508 up to SIL3
- Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
- Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
- World's easiest proof test for SIL and WHG saves time and costs
Our Advantage:
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range: Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
