6BABL1-62X2/139 IP66 IP67 E&H Instrument Thermal Mass Flowmeter

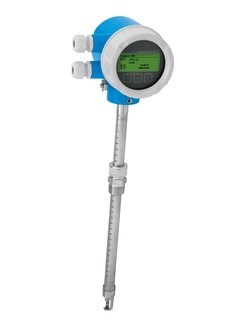

Proline T-Mass B 150 Thermal Mass Flowmeter 6BABL1-62X2/139 E &H Instrument

• Max. measurement error: 3% o.r., 4% o.r., or 5% o.f.s. (depending on chosen option of ordering feature "Calibration flow")
• Measuring range: 20 to 720,000 kg/h (45 to 1,587,600 lb/h) or 20 to 1,080,000 kg/h (45 to 2,381,400 lb/h) (for air, depending on chosen option)
• Medium temperature range: -40 to +100 °C (-40 to +212 °F)
• Max. process pressure: 20 bar g (290 psi g)
• Wetted materials:
  • Transducer: 1.4404 (316L)
  • Insertion tube: 1.4404 (316L); 1.4435 (316L)
  • Connection: Compression fitting: 1.4404 (316L)
  • Sealing ring: EPDM; HNBR; 1.4401 (316)
  • Clamping ring: PEEK 450G

See all specifications

The t-mass B 150 insertion version is suitable for large pipelines or rectangular ventilation ducts. It is designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at sub-metering applications. Its 4-wire technology is contained within a rugged compact aluminum housing. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.

• Measuring principle is characterized by a high operable flow range and direct mass flow measurement
• Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts

• Insertion version for nominal diameter DN 80 to 1500 (3 to 60")
• Installation and removal of sensor without process interruption
• Easy installation
• Device in compact version with DC 24 V power supply
• 4-20 mA HART, pulse/frequency/switch output
• Compact and robust transmitter

• Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts
• Optimal process monitoring - easy measurement even at low pressures and flow velocities
• Cost-effective measurement - easy installation, negligible pressure loss and maintenance-free
• Reliable flow trending - multivariable measurement
• Fast and efficient commissioning - guided operating menus
• High plant availability - self-diagnostics and error monitoring
• Automatic recovery of data for servicing
