Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar

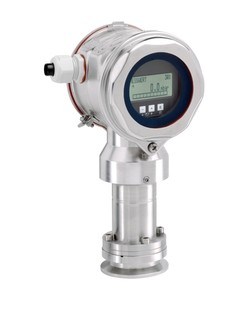

The PMC71-MVE6/0 Absolute and Gauge Pressure Cerabar is a high-performance digital pressure transmitter featuring a capacitive, oil-free ceramic measuring cell.

The Cerabar PMC71 is designed for process and hygienic applications, providing reliable pressure, level, volume or mass measurement in liquids and gases. Its vacuum-proof ceramic membrane with integrated breakage detection ensures a high degree of system safety.

• Two chamber aluminum or stainless steel (316L) housing
• Process connections: Threads, flanges or hygienic connections
• Process temperature: -40 to +150°C (-40 to +302°F)
• Measuring ranges: -1/0 up to +40bar (+1.5 to +600psi)
• Accuracy: ±0.05%, "Platinum" ±0.025%
• International certifications: explosion protection, WHG, SIL, hygienic approvals, marine approvals

• Ideal for vacuum applications and corrosive/abrasive media
• Enhanced process safety through membrane breakage detection
• Overload-resistant high purity ceramic sensor (99.9% Al2O3)
• HistoROM data management for easy commissioning and maintenance
• Simple menu-guided setup via local display with multiple protocol options
• Highest safety standards with SIL2/3 certification (IEC 61508)
• Available with pre-mounted, leak-tested manifolds
