E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU41-ARB2A2 |
Product Details
Accuracy:
+/- 2 Mm Or +/- 0,2 % Of Set Measuring Range
Process Temperature:
-40 °C ... 80 °C (-40 °F ... 176 °F)
Main Wetted Parts:
PVDF
Measuring Principle:
Ultrasonic
Max. Measurement Error:
Low Accuracy
Outputs:
4...20mA(Hart),PA,FF
Inputs:
2-wire 16-36V DC 4-wire 16-36V DC 90-253V AC 50/60Hz
Degree Of Protection:
IP68
Highlight:
FMU41-ARB2A2
,PVDF Prosonic
,IP68 Prosonic
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

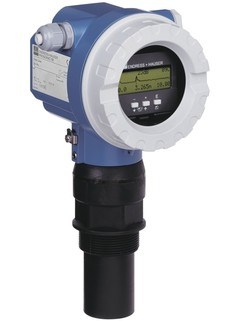

E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
Product Details
Manufacturer: Endress+Hauser
Product Name: Ultrasonic measurement Time-of-Flight Prosonic FMU41
Product No: FMU41-ARB2A2
Product Name: Ultrasonic measurement Time-of-Flight Prosonic FMU41
Product No: FMU41-ARB2A2
A-Approval: Non-hazardous area
R-Process Connection: Thread ISO228 G2, PVDF
B-Power Supply; Output: 2-wire; 4-20mA HART
2-Operation: 4-line display VU331, envelope curve display on site
A-Housing: F12 Alu, coated, IP68 NEMA6P
2-Cable Entry: Gland M20 (EEx d > thread M20)
Weight: approx. 2.6 kg (5.73 lbs)
Shipping Weight: 3.6 kg
Product Description
The Prosonic FMU41 sensor is designed for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Technical Specifications
Accuracy: +/- 2 mm or +/- 0.2% of set measuring range
Process Temperature: -40°C to 80°C (-40°F to 176°F)
Process Pressure: 0.7 bar to 3 bar abs (10 psi to 44 psi)
Main Wetted Parts: PVDF
Common Models
| FMU40-ANG2A2 | FMU41-ARB2A2 | FMU860-R1A1A1 | FDU81-RG2A |
| FMU861-R1B1A1 | FDU80-RG2A | FMU862-R1A1A1 | FMU862-R1A1A1 |
| FDU81-RG1A | FMU90-R11CA131AA1A | FDU81-RG2A | FMU231A-AA22 |
| FDU81-RG3A | FMU862-R1E1A1 | FDU81-RG4A | FDU80-RG8A |
| FMU230E-AA32 | FMU90-R11CA131AA1A | FMU231E-AA32 | FDU92-RG3A |
| FMU40-ARB2A2 | FTU231E-AA22 | FMU40-ANB1A2 | FMU860-R1A2A1 |
