SIEMENS Pressure Transmitter
>

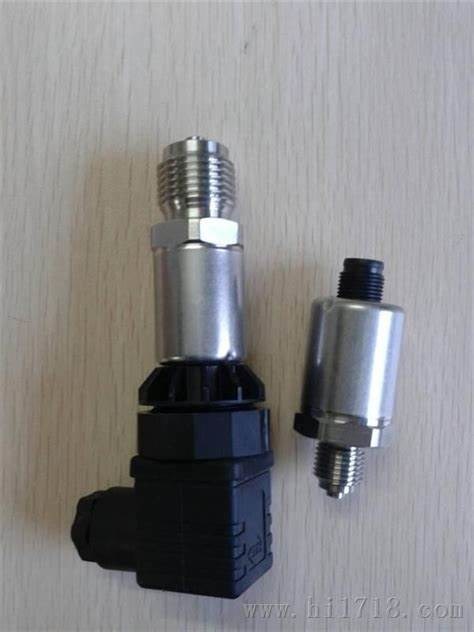

7MF1567-3CD00-1AA1 SITRANS P220 Transmitters for pressure
|
7MF1567-3CD00-1AA1 SITRANS P220 Transmitters for pressure
| Place of Origin | China Or France |
| Brand Name | SIEMENS |
| Certification | ROHS |
| Model Number | 7MF1567-3CD00-1AA1 |
Product Details
Product Group:
4778
Country Of Origin:
Switzerland
Shipping Weigt:
0.2KG
Commodity Code:
90262020
Model:
Pressure Transmitter
Supply Voltage:
24 V DC
Highlight:
SITRANS P220 Pressure Transmitters
,7MF1567-3CD00-1AA1 Pressure Transmitters
,SITRANS P220 Transmitters
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
7MF1567-3CD00-1AA1 SITRANS P220 Transmitters for pressure
| Article Number (Market Facing Number) | 7MF1567-3CD00-1AA1 |
|---|---|
| Product Description | SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications. Non-linearity: 0.25% (typically). Wetted parts material: stainless steel; non-wetted parts material: stainless steel. Measuring range for gauge: 0 to 25 bar, Overload-pressure 62.5 bar. Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection. Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector). Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar). Standard version. |
| Product family | SITRANS P220 |
| Product Lifecycle (PLM) | PM300:Active Product |
Price Data
| Price Group / Headquarter Price Group | 8P4 |
|---|---|
| List Price (w/o VAT) | Show prices |
| Customer Price | Show prices |
| Metal Factor | None |
Delivery Information
| Export Control Regulations | ECCN : N / AL : N |
|---|---|
| Factory Production Time | 1 Day/Days |
| Net Weight | 0.200 Kg |
| Packaging Dimension | 90.00 x 148.00 x 42.00 MM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
Additional Product Information
| EAN | 4047623602811 |
|---|---|
| UPC | Not available |
| Commodity Code | 90262020 |
| LKZ_FDB/ CatalogID | FI01-1 |
| Product Group | 4778 |
| Group Code | R3P0 |
| Country of origin | Switzerland |
| Compliance with the substance restrictions according to RoHS directive | Since: 2017.07.20 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
