SIEMENS Pressure Transmitter
>
7MF1567-3CD00-6AA3 SITRANS P220 Transmitters For Pressure 4-20ma
|
7MF1567-3CD00-6AA3 SITRANS P220 Transmitters For Pressure 4-20ma
| Place of Origin | China Or France |
| Brand Name | SIEMENS |
| Certification | ROHS |
| Model Number | 7MF1567-3CD00-6AA3 |
Product Details
Product Group:
4776
Country Of Origin:
Switzerland
Shipping Weigt:
0.5KG
Commodity Code:
90262020
Model:
Pressure Transmitter
Quantity Unit:
1 Pcs
Highlight:
4-20ma SITRANS P220 Transmitters
,7MF1567-3CD00-6AA3
,7MF1567-3CD00-6AA3 SITRANS P220 Transmitters
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

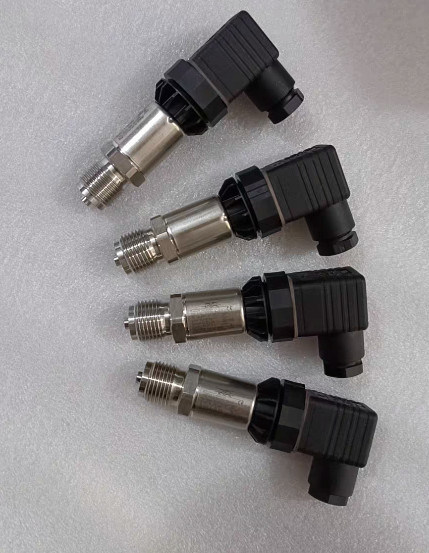

7MF1567-3CD00-6AA3 SITRANS P220 Transmitters For Pressure 4-20ma
Product Specifications
| Article Number | 7MF1567-3CD00-6AA3 |
|---|---|
| Product Description | SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications. Non-linearity: 0.25% (typically). Wetted parts material: stainless steel; non-wetted parts material: stainless steel. Measuring range for gauge: 0 to 25 bar, Overload-pressure 62.5 bar. Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection. Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland PG11 (with connector). Process connection: G1/2" male to EN 837-1 (1/2" BSP male). Special version "Made for Alfa Laval Aalborg A/S, Denmark" with Aalborg logo included. |
| Product Family | SITRANS P220 |
| Product Lifecycle | PM300: Active Product |
Technical Details
- Fully welded version for high-pressure applications
- Non-linearity: 0.25% (typical)
- Stainless steel construction (wetted and non-wetted parts)
- Measuring range: 0 to 25 bar (gauge)
- Overload pressure: 62.5 bar
- Output signal: 4-20 mA two-wire connection
- Power supply: DC 7 to 33 V
- Electrical connection: DIN EN 175301-803-A plug
- Process connection: G1/2" male to EN 837-1
Pricing & Delivery
| Price Group | 8P4 / 8P4 |
|---|---|
| List Price | Show prices |
| Customer Price | Show prices |
| Minimum Order Quantity | 25 Pieces |
| Estimated Dispatch Time | 25 Working Days |
| Net Weight | 0.200 Kg |
Packing and Shipping
Product Packaging:
- Securely packaged in corrugated cardboard box
- Tamper-evident tape for safety
- Foam inserts for protection during transit
- Includes user manual and installation hardware
Shipping Options:
- Shipped via UPS, FedEx, or other reputable carriers
- Multiple shipping options available (standard, expedited, overnight)
- Tracking number provided for all shipments
Our Advantages
- Competitive pricing and reliable delivery
- Extensive industry experience
- Highly trained technical staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible customer service
- Cost-effective shipping solutions
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, they are new and original.
Q: What is the warranty period?
A: One-year warranty.
Q: Can you provide certificates?
A: Yes, available depending on product - please check with our sales team.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EURO, USD, RMB.
Q: Where do you ship to?
A: Worldwide via DHL, UPS, FedEx, TNT and other carriers.
