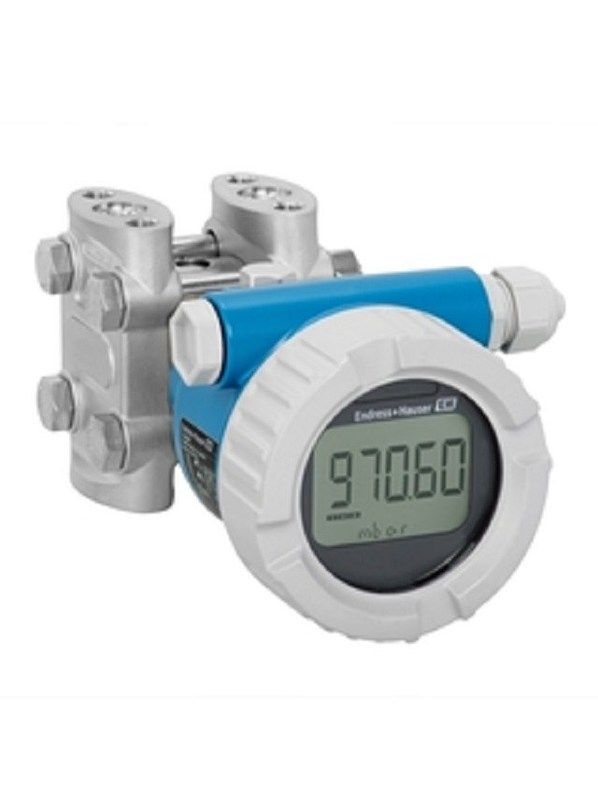

PMD55B-6594/0 Deltabar PMD55B 7.5psi Differential Pressure Transmitter Custom
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | PMD55B-6594/0 |
Custom Deltabar PMD55B
,Deltabar PMD55B Pressure Transmitter
,7.5psi Differential Pressure Transmitter
PMD55B-6594/0 PMD55B-BFBACBH37FCASAJA1D+Q1VD Deltabar PMD55B - Differential Pressure Transmitter
Approval: BFATEX/IEC II 2G Ex db IIC T6 Gb
Output: BA2-wire 4-20mA HART
Display; Operation: CSegment display w/o buttons
Housing; Material: BSingle compartment; Alu, coated
Electrical Connection: HThread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: 3Differential
Sensor Range: 7F500mbar/50kPa/7.5psi
Calibration; Unit: CNominal value; kPa/MPa
Installation: AHorizontal impulse line, left side high pressure, with side vent
Process Connection: SAJNPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: A316L
Fill Fluid: 1Silicone oil
Seal: DFKM
Accessory Enclosed: Q1Mounting bracket, wall/pipe, 316L
Regional Device Adaption: VDChina
| Accuracy | Standard: up to 0.075% Platinum: up to 0.055% |
|---|---|
| Process temperature | -40°C...+110°C (-40°F...+230°F) |
| Pressure measuring range | 30 mbar.... 40 bar (0.45 psi... 600 psi) |
| Main wetted parts | 316L, AlloyC |
| Material process membrane | 316L, AlloyC |
| Measuring cell | 30 mbar...40 bar (0.45 psi...600 psi) |
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
- Pressure measuring range: up to 40 bar (600 psi)
- Static pressure up to 250bar (3750psi)
- Accuracy: up to +/-0.055%
- Wireless control of the device in the process area with the SmartBlue App without interrupting the process
- Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
- Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
