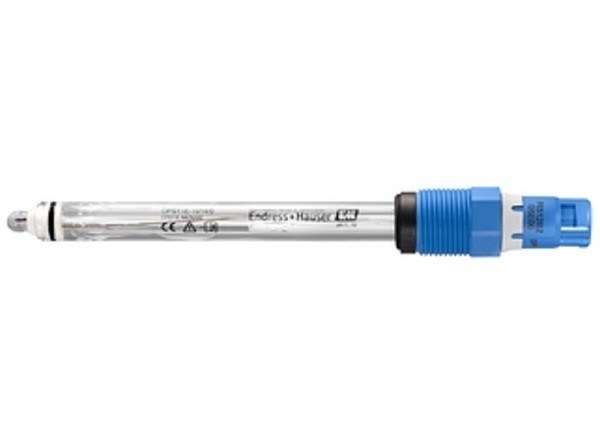

AA7BTA2 Digital E&H Instrument PH Sensor Memosens CPS11E Non Hazardous Area
|
AA7BTA2 Digital E&H Instrument PH Sensor Memosens CPS11E Non Hazardous Area
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CPS11E-AA7BTA2 |
Product Details
Approval:
Non-hazardous Area
Electrode Type:
Basic Version, Zero Point PH 7,0, Temperature Sensor NTC 30k
Shaft Length:
120mm
Application Range:
0-14 PH, 0...135oC, 0,8...17 Bar (abs)
Reference System:
PTFE Ring Junction, Ion Trap, 3 M KCl, Ag/AgCl
Measuring Principle:
Gel Compact Electrode With PTFE Ring Junction
Highlight:
AA7BTA2 E&H Instrument
,Memosens E&H Instrument
,Digital memosens cps11e
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
AA7BTA2 Digital E&H Instrument PH Sensor Memosens CPS11E Non Hazardous Area
CPS11E-AA7BTA2 Digital PH Sensor Memosens CPS11E is a high-performance pH sensor designed for standard applications in process and water & wastewater industries.
Product Specifications
| Model | CPS11E-AA7BTA2 |
|---|---|
| Approval | AA Non-hazardous area |
| Electrode Type | 7 Basic version, zero point pH 7.0, temperature sensor NTC 30k |
| Application Range | B 0-14 pH, 0...135°C, 0.8...17 bar (abs) |
| Reference System | TA PTFE ring junction, ion trap, 3 M KCl, Ag/AgCl |
| Shaft Length | 2 120mm |
| HS-Code | 90279000 |
| Country of Origin | DE |
| Country of Dispatch | DE |
Technical Specifications
Measurement Range
- Application A: pH 1 to 12
- Application B: pH 0 to 14
- Application F: pH 0 to 10
Process Temperature
- Application A: -15 to 80°C (5 to 176°F)
- Application B: 0 to 135°C (32 to 275°F)
- Application F: 0 to 70°C (32 to 158°F)
Process Pressure
- Applications A and B: 0.8 to 17 bar (11.6 to 246.5 psi) absolute
- Application F: 0.8 to 7 bar (11.6 to 101.5 psi) absolute
Field of Application
Memosens CPS11E is the digital all-rounder for stable processes. It measures reliably even in extreme pH ranges or hazardous areas. Thanks to Memosens 2.0 digital technology, the pH sensor resists moisture and enables lab calibration, increasing process safety and simplifying operation. Its extended storage of calibration and process data provides the perfect basis for predictive maintenance.
- Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants
- Water & wastewater treatment:
- Drinking water
- Cooling water
- Well water
- Wastewater treatment plants
Key Benefits
- IIoT ready: Memosens 2.0 offers extended storage of calibration and process data
- Low operating costs: Lab calibration and quick sensor exchange minimize downtime
- Robust, low maintenance electrode with long poison diffusion path
- Process glass suitable for full pH range and pressure-stable up to 17 bar
- Improved optional salt storage for reliable measurement in low conductivity applications
- Maximum process integrity through non-contact, inductive signal transmission
