CPS11D-7BT21 E&H Instrument Digital PH Sensor Orbisint CPS11D
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CPS11D-7BT21 |
Product Details
Version:
Basic Version
Material:
Glass And PTFE
Approval:
Non-hazardous Area + UKCA Marking
Shaft Length:
120mm
Application Range:
0-14pH, 0-135oC, 16 Bar; With Ion Trap
Measurement Range:
PH 0 To 14
Highlight:
CPS11D-7BT21 E&H Instrument
,CPS11D-7BT21 Digital PH Sensor
,Orbisint CPS11D
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description

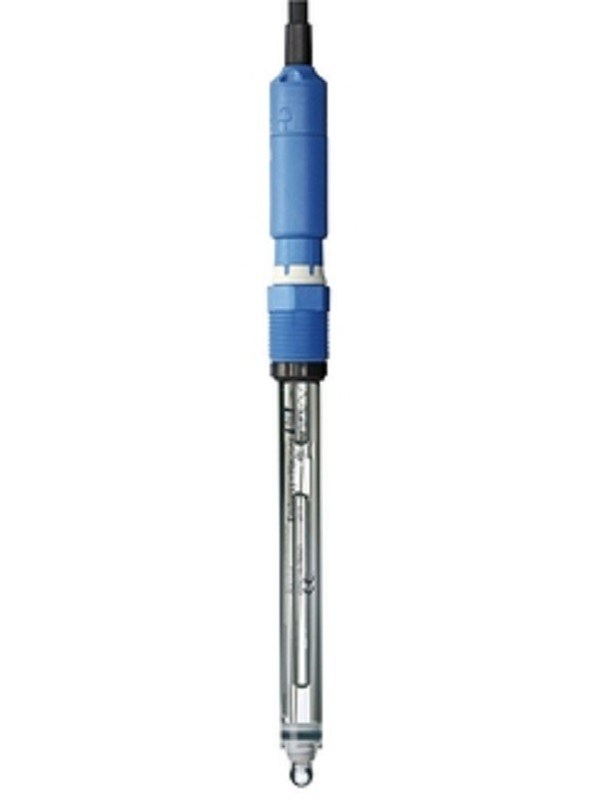

CPS11D-7BT21 E&H Instrument Digital PH Sensor Orbisint CPS11D
Product Specifications
| Model | CPS11D-7BT21 |
| Version | 7 (Basic version) |
| Application Range | BT 0-14pH, 0-135°C, 16 bar; with ion trap |
| Shaft Length | 120mm |
| Approval | Non-hazardous area + UKCA marking |
| HS-Code | 90279000 |
| Country of origin | DE |
| Country of dispatch | DE |
Key Features
- Memosens glass electrode for standard applications
- Measurement range: pH 0 to 14
- Process temperature: 0 to 135°C (32 to 275°F)
- Process pressure: 1 to 17 bar (15 to 246 psi)
Field of Application
Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers best value for money.
- Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants
- Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, FM, CSA approval for use in hazardous areas.
Product Benefits
- Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
- Optional salt ring for low conductivity applications such as boiler feed water and water for injection
- Maximum process safety through non-contact, inductive signal transmission
- Enables predictive maintenance due to storage of sensor and process-specific data
- Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Product Images
Common Related Models
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves, Analysis meter, Positioner, Acuator, etc.
