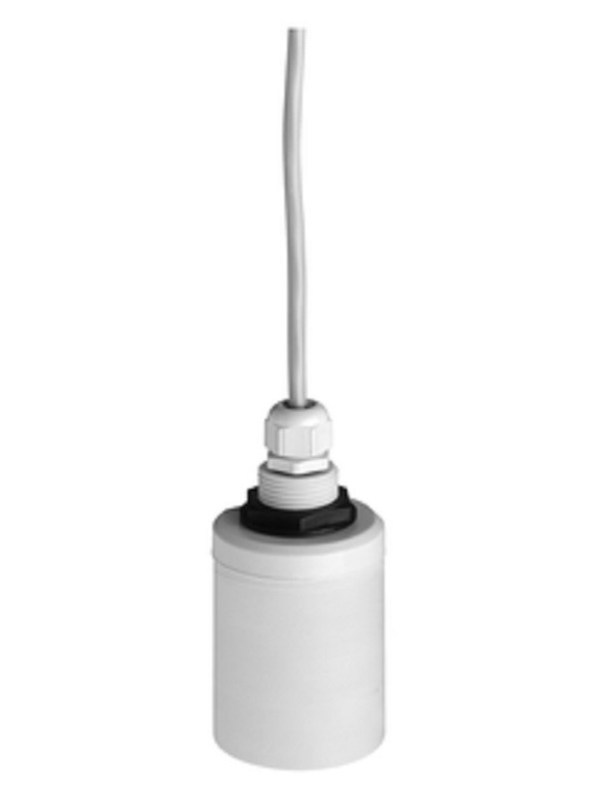

Ultrasonic Measurement E&H Instrument Time Of Flight Prosonic FDU91-RG2AA
|
Ultrasonic Measurement E&H Instrument Time Of Flight Prosonic FDU91-RG2AA
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | FDU91-RG2AA |
Product Details
Approval:
Non-hazardous Area
Accuracy:
+/- 2 Mm + 0.17% Of Measured Distance
Heater:
W/o
Cable Length:
10m/32ft
Process Connection:
Thread ISO228 G1, PVDF
Additional Option:
Basic Version
Highlight:
Prosonic E&H Instrument
,Ultrasonic E&H Instrument
,Ultrasonic Prosonic FDU91
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
Ultrasonic Measurement E&H Instrument Time Of Flight Prosonic FDU91-RG2AA
Product Description
FDU91 RG2AA Ultrasonic Measurement Time-Of-Flight Prosonic FDU91
FDU91-RG2AA Ultrasonic Measurement Time-Of-Flight Prosonic FDU91
| Model: | FDU91-RG2AA |
| Approval: | R - Non-hazardous area |
| Process Connection: | G - Thread ISO228 G1, PVDF |
| Cable Length: | 2 - 10m/32ft |
| Heater: | A - W/o |
| Additional Option: | A - Basic version |
| HS-Code: | 90318080 |
| Country of origin: | DE |
| Country of dispatch: | DE |
Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 10m)
Specs at a glance
- Process temperature: -40 °C ... 80 °C (-40 °F ... 176 °F)
- Process pressure / max. overpressure limit: 0.7 bar ... 4 bar abs (10 psi ... 58 psi)
- Max. measurement distance: Liquids: 10 m (33 ft), Solids: 5 m (16 ft)
- Accuracy: +/- 2 mm + 0.17% of measured distance
- Main wetted parts: PVDF (fully welded IP68 / NEMA6P)
Field of application
The FDU91 ultrasonic sensor provides continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. It's also suitable for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suitable for explosion hazardous areas.
Maximum measuring range in liquids 10m (33ft), solids 5m (16ft). Sensor for continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.
- Process connection: Thread
- Temperature: -40 to +80°C (-40 to +176°F)
- Pressure: +0.7 to +4bar (+10 to +58psi)
- Maximum measuring range: Liquids 10m (33ft), solids 5m (16ft)
- Blocking distance: 0.3m (1ft)
- International explosion protection certificates
Benefits
- Integrated temperature sensor for Time-of-Flight correction. Accurate measurements possible even with temperature changes
- Hermetically welded PVDF sensor for highest chemical resistance
- Suitable for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
- Reduced build-up formation because of the self-cleaning effect
- Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
- Weather resistant and flood-proof (IP 68)
- Integrated heating against a build-up of ice at the sensor (optional) ensures reliable measurement
Common related models
| CLS54-AVA4012 |
| FTM21-AA245A |
| FTM21-AA242A |
| FTL31-AA4M2AAWBJ+LC |
| CLS21D-C1N1 |
| CUS52D-AA1AA4 |
| CPF81D-7LH1O |
| PTP31B-5NR2/1D7 |
| FTL50-NGM2AA4G7A |
| FTL31-1420/0 |
| CLS21-C1N3A |
| CLS21-C1N2A |
| CLS15-B1M3A |
| 71072574 |
| COS61D-1009/0 |
| CLS50-G1A1 |
| CM42-IEA000EAZ00 |
| COS61-A2F0 |
| 71185295 |
| FTE31-A3BB11 |
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with us.
