FMR20-AAPBMWDEWFE1 E&H Instrument Of Liquids And Solids
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | FMR20-AAPBMWDEWFE1 |
Product Details
Approval:
Non-hazardous Area
Cable Length:
5m/16ft
Power Supply; Output; Operation:
2-wire; 4-20mA HART; HART/Bluetooth (App) Configuration
Antenna; Max. Measuring Range:
40mm/1-1/2"; 15m Liquid -40oC...80oC/-40…176oF
Process Connection Rear Side; Material:
Thread G1 ISO228; PVDF
Process Connection Front Side; Material:
Process Connection Front Side; Material:
Highlight:
FMR20-AAPBMWDEWFE1 E&H Instrument
,5m Cable E&H Instrument
,FMR20-AAPBMWDEWFE1 Liquid Instrument
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description

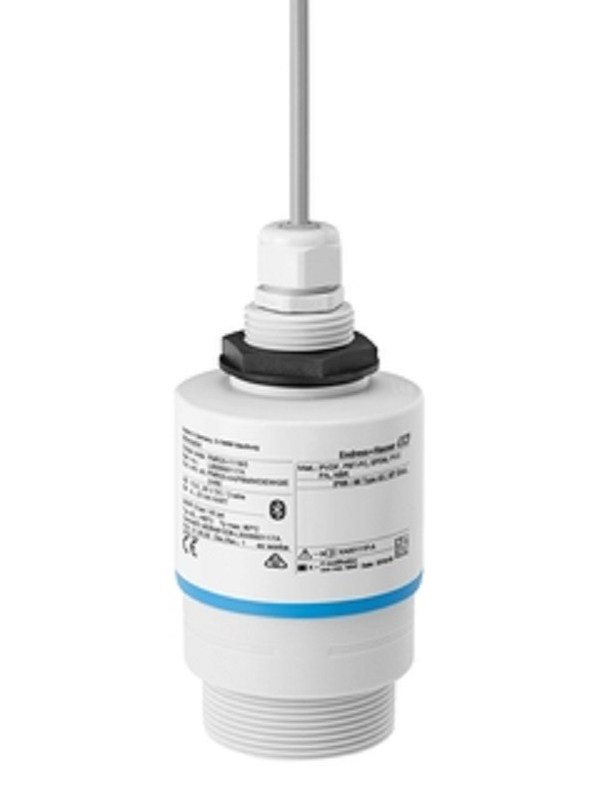

FMR20-AAPBMWDEWFE1 E&H Instrument Of Liquids And Solids
Product Overview
The FMR20-AAPBMWDEWFE1 is a high-performance radar instrument designed for continuous non-contact level measurement of liquids and solids across various industrial applications.
Technical Specifications
Model: FMR20-AAPBMWDEWFE1
Approval: AA (Non-hazardous area)
Power Supply: 2-wire; 4-20mA HART
Configuration: HART/Bluetooth (App)
Process Connection: Thread G1 ISO228 (Rear), Thread ISO228 G1-1/2 (Front)
Material: PVDF
Cable Length: 5m/16ft
HS-Code: 90261029
Country of Origin: DE
Key Specifications
- Accuracy: ±2 mm (0.08")
- Process Temperature: -40...+80°C (-40...+176°F)
- Process Pressure: -1...+3 bar (-14.5...+43 psi)
- Max. Measurement Distance: DN40: 15 m (49.2 ft), DN80: 20 m (65.6 ft)
- Main Wetted Parts: PVDF, PBT
- Measuring Frequency: 26GHz
Field of Application
The Micropilot FMR20 is ideal for continuous non-contact level and flow measurement (via linearization table), particularly suited for water & wastewater applications and utilities across all industries. Its compact design makes it perfect for installations with limited space.
Product Benefits
- Non-contact radar with HART or Bluetooth® app configuration
- Compact design with unique radar chip for space-limited applications
- Excellent price-performance ratio
- Ideal for water & wastewater, mining, minerals & metals industries (IP66, 68 / NEMA4x, 6P)
- Full PVDF body for outdoor durability and sealed wiring for harsh environments
- Simple setup with three main parameters for most applications
- Wireless remote access via Bluetooth® for hazardous or hard-to-reach areas
Product Images
Related Models
| FTL31-AA4U3BAWSJ | FTL31-AA4U2AAWBJ |
| CPM223-MR8005 | CPS16D-7AT2G |
| CLS21-C1N3A | FTL33-AA4N3AB1GJ+RM |
| FTL31-AA4M3AAWBJ+HD | 5H3B04-AAIBAEAFAAAO2V0AA1+AK |
| FMX21-AA111HGB10A+PQ,L=10m | FTL325N-F1A1 |
| FTL50-ABG2AA4E7A | RIA14-BD3B+I4Z1 |
| CLS50-A2B2 | CLM223-ID0005 |
| CLS16-3D1A1P | CM42-PJA001EAZ00 |
| CLS12-B1D1A | CLS50D-BA3B21 |
| CLD132-PMV130AB1 |
Our Advantages
- Competitive pricing and fast delivery
- Extensive industry experience
- Highly trained technical staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible, customized service
- Cost-effective global shipping options
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, all products are new and original.
Q: What is the warranty period?
A: One-year warranty is provided.
Q: Can you provide certificates?
A: Yes, available certificates vary by product - please consult our sales team for details.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EURO, USD, or RMB.
Q: What are your shipping options?
A: We ship worldwide via DHL, UPS, FedEx, TNT and other major carriers.
Our Product Range
Transmitters, Safety barriers, Flow meters, Probes, Sensors, Transducers, Valves, Analysis meters, Positioners, Actuators, and more.
