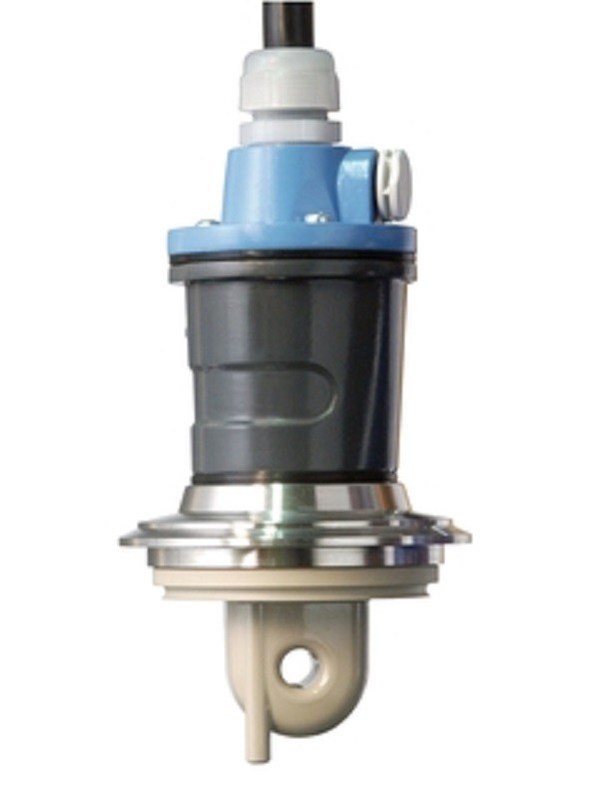

CLS54 ASMS022 PT1000 Analog Conductivity Sensor Indumax CLS54
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CLS54-ASMS022 |
Product Details
Approval:
Non-hazardous Area + UKCA Marking
Process Connection:
SMS 2"
Additional Option:
Not Selected
Cable Connection:
10m Fixed Cable
Temperature Sensor:
Pt1000
Measurement Range:
100 µS/cm - 2000 MS/cm Cell Constant K: 6,3 1/cm
Highlight:
CLS54 ASMS022 Analog Conductivity Sensor
,PT1000 Analog Conductivity Sensor
,Indumax CLS54
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
CLS54 ASMS022 PT1000 Analog Conductivity Sensor Indumax CLS54
Product Details
Model: CLS54-ASMS022
| Approval: | A (Non-hazardous area + UKCA marking) |
| Process connection: | SMS 2" |
| Additional option: | Not selected |
| Cable connection: | 10m fixed cable |
| Temperature sensor: | Pt1000 |
| HS-Code: | 90279000 |
| Country of origin: | DE |
| Country of dispatch: | DE |
Toroidal conductivity sensor for hygienic and sterile applications
Specifications
Measurement range: 100 µS/cm - 2000 mS/cm (Cell constant k: 6,3 1/cm)
Process temperature: -10°C - +125°C (14°F - 257°F)
Sterilization: 150°C/5 bar (max. 60 min.) (302°F / 72.5 psi)
Process pressure: 12 bar (174 psi)/20°C (68°F), 8 bar (116 psi)/125°C (257°F)
Field of Application
The Indumax CLS54 inductive conductivity sensor protects all of your products and processes that must meet the strictest hygienic and sterile demands. Its outstanding performance combined with a unique hygienic design ensures highest safety and quality of your products.
Indumax CLS54 measures toroidal conductivity in hygienic food & beverage and life science applications, such as:
- Phase separation of product/water and product/product mixtures in pipe systems
- Control of CIP (cleaning in place) processes in the return channel
- Concentration control in remaking of CIP cleaning agents
- Product monitoring in pipe systems, bottling plants, quality assurance
- Leakage monitoring
Its unique hygienic design is certified by EHEDG and 3-A.
Key Benefits
- Unique hygienic design avoids contamination
- With all hygienic certificates required in hygienic applications
- Food grade virgin PEEK body without joints nor crevices
- Certified biocompatibility according to USP class VI
- Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
- Compliant with EG 2023/2006 and 1935/2004
Common Related Models
CUM253-TU0005
FMP57-AAACCALCA4GGE+LA
FMX21-AA251GGD10A
CCS51D-AA11AD
DTI200-A12D1A
FTE31-B3BB21
PMC21-11L5/156
PMP11-10Q9/0
RIA16-1374/0
CLD134-PMV538AB2
FTI51-AAA1RCJ43A1A
DTT31-A1C111DE2CAB
COS61D-AAA1A4
FTL33-AA4M3AB3EJ
FMI51-A1AMRJB2A1A
RMA42-AAC
FTL31-AA4U3BAWSJ+HD
FTL31-AA4M3AAWBJ+HD
FTL33-AA4U3ABWSJ
FTL33-AA4W3ABWSJ
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, they are new and original.
Q: How long is the warranty?
A: One-year warranty.
Q: Can any certificates be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: What payment methods do you accept?
A: We accept T/T, Alipay and PayPal in EURO, USD, RMB.
Q: What are your shipping options?
A: We can ship worldwide via DHL, UPS, FedEx, TNT and IPS, PDE, BRE, KARAPOST etc.
Our Product Range: Transmitter, Safety barriers, Flow meters, Probe, Sensor, Transducer, Valves, Analysis meter, Positioner, Actuator, etc.
