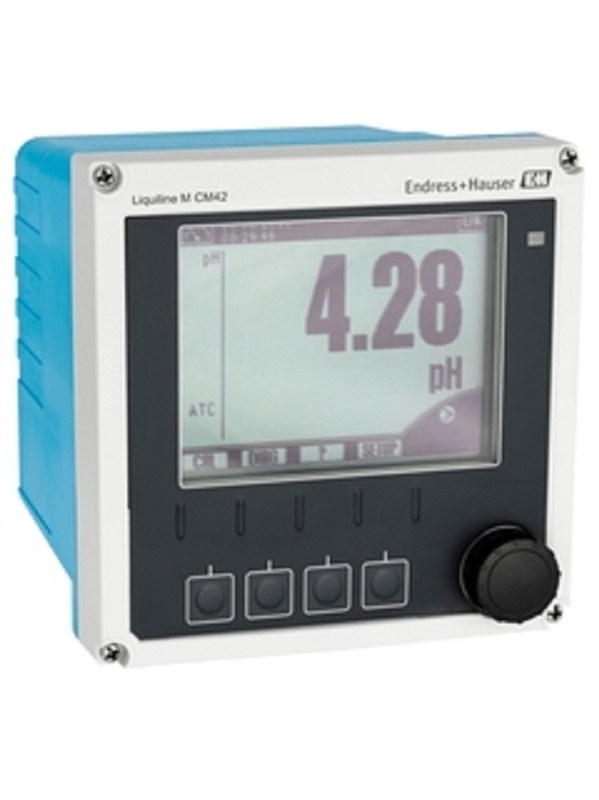

CM42 MEA000EAZ00 E&H 1 Channel Transmitter Liquiline M CM42
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CM42-MEA000EAZ00 |
CM42 MEA000EAZ00 1 Channel Transmitter
,E&H 1 Channel Transmitter
,Liquiline M CM42
CM42-MEA000EAZ00 1-Channel Transmitter Liquiline M CM42
| Sensor Input | M Digital, Memosens pH, (glass) ORP |
| Approval | E ATEX II (1)2G Ex ib (ia Ga) IIC T4/T6 G |
| Certificate | A not selected |
| Output | 0 1x4-20mA, HART |
| Housing | 0 Plastics (PC) |
| Cable Entry | 0 Gland M20x1,5 |
| Software | EA Basic version |
| Language Instrument/Documentation | Z Chinese + English; Chinese |
| Documentation | 0 Starting up + operation |
| Additional option | 0 Basic version |
| HS-Code | 90278930 |
| Country of origin | DE |
| Country of dispatch | DE |
Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food.
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication
1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later
Ingress protection
IP66/67, NEMA 4X
Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline's intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.
The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:
- Chemicals
- Food & Beverages
- Life Sciences
- Power & Energy
- Oil & Gas
- Primaries & Metal
Liquiline CM42 features the following protocols and interfaces:
- 0/4...20 mA
- HART
- PROFIBUS PA
- FOUNDATION Fieldbus
With its international explosion protection approvals, such as IECEx, ATEX, FM, CSA, TIIS and NEPSI, the transmitter is suitable for hazardous area use.
- Simple commissioning with quick setup and navigator
- The Memosens technology allows plug & play with pre-calibrated Memosens sensors
- Less storage thanks to modular design
- Predictive maintenance system detects when a sensor has to be cleaned, calibrated or replaced
| CUS52D-AA1AA3 | CPS72-0PT2ESA |
| FMP57-AAACCALCA4GGE+LA | CLS16-3D3A1P |
| FHX50-AACDBA | FMR50-AACLAABMGGF+AK |
| FDU93-RG2A | FMU90-R11CA111AA3A |
| FTL325N-H1E1 | CLS21D-C1N1 |
| 8E1C08-AADBBAASAD2SHA1+AK | DTI200-A13C2A |
| 5H2B02-AAACCAAD5S0A+AK | CM42-IIA000EAZ00 |
| FTL33-AA4U3ABWSJ | FMR60-AAACCAGAA4GGJ+AK |
| FMR52-BCKCCDBPAJK+AKZ1 | 52006326 |
| CPF81-LH31C4 | 5P5B65-4290/0 |
