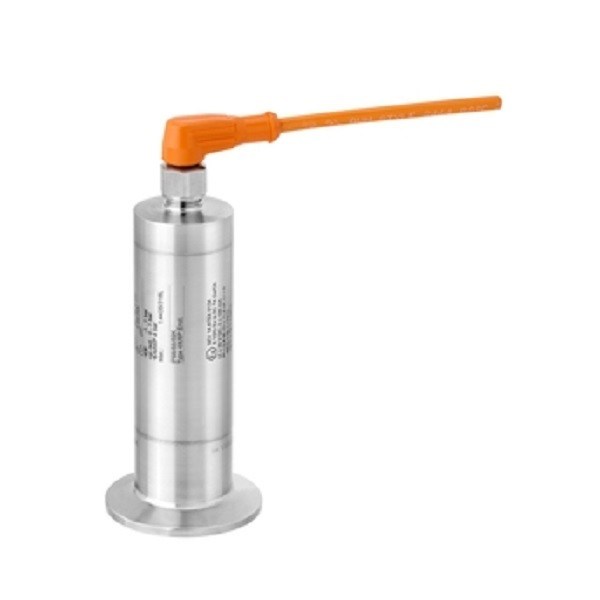

25bar 2.5MPa E&H Instrument Absolute And Gauge Pressure Cerabar PMP23
|
25bar 2.5MPa E&H Instrument Absolute And Gauge Pressure Cerabar PMP23
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | PMP23-AA1U1RBWSJ+QJ |
Product Details
Approval:
Non-hazardous Area
Output:
4-20mA
Sensor Range:
25bar/2.5MPa/375psi Gauge, Overload: 100bar/10MPa/1500psi
Calibration Unit:
Sensor Range; Mbar/bar
Process Connection:
Thread ISO228 G1 Seal O-ring 316L, Flush Mount, Adapter, 3A, EHEDG
Electrical Connection:
Valve Plug ISO4400 M16, IP65 NEMA Type 4X Encl.
Max. Overpressure Limit:
160 Bar (2400 Psi)
Highlight:
2.5MPa E&H Instrument
,PMP23 E&H Instrument
,375psi Absolute And Gauge Pressure
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
25bar 2.5MPa E&H Instrument Absolute And Gauge Pressure Cerabar PMP23
Product Details
PMP23-AA1U1RBWSJ+QJ Absolute And Gauge Pressure Cerabar PMP23
| Model | PMP23-AA1U1RBWSJ+QJ |
| Approval | AA Non-hazardous area |
| Output | 4-20mA |
| Electrical Connection | Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl. |
| Sensor Range | 25bar/2.5MPa/375psi gauge, overload: 100bar/10MPa/1500psi |
| Calibration; Unit | Sensor range; mbar/bar |
| Process Connection | Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDG |
| Accessory Enclosed | Weld-in adapter G1, d=60, 316L, seal silicone O-ring, additional EPDM (EHEDG) O-ring |
| HS-Code | 90262020 |
| Country of origin | DE |
| Country of dispatch | DE |
Cost-effective pressure transducer with fully welded design for the food & beverage industry.
Key Specifications
| Accuracy | 0.3% |
| Process temperature | -10…+100°C (+14…+212°F) 135°C for 1h (275°F for 1h) |
| Pressure measuring range | 400 mbar…+40 bar (6...+600psi) |
| Measuring cell | +400 mbar…+40 bar (+6 psi...+600 psi) |
Field of Application
The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.
Pressure transducer to measure absolute or gauge pressure in gases or liquids.
- Process connections: Flush-mounted hygienic connections, flush mounted thread connections
- Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max. 1h
- Process pressure: 400mbar to +40bar (6 to 600psi)
- Accuracy: ±0.3% of span
- International explosion protection certificates, hygienic certificates
Product Benefits
- Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
- IO-Link reduces costs and complexity due to easy configuration via simple configuration tools or through the engineering system
- Fully welded process connections maximize process safety by minimizing the use of gaskets
- Enhanced process availability is ensured by the stringent use of 316L material and the possibility of IP 69 ingress protection for washdown conditions
- A high flexibility of use and therefore lower storage costs are guaranteed as the PMP23 is suitable for CIP / SIP cleaning
- The PMP23 can support the need for hygienic documentation and traceability in the plant with available certifications
Related Models
Important Terms
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range: Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
