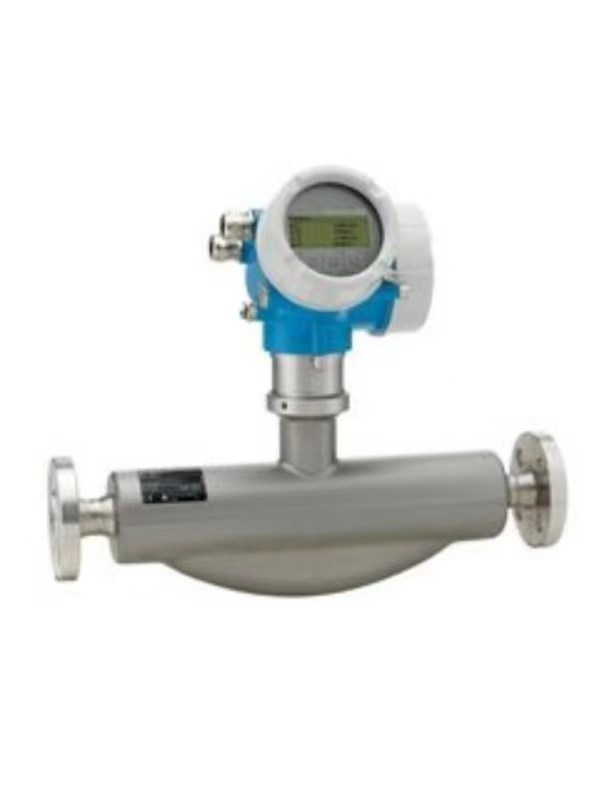

Proline Promass Coriolis Flowmeter 8F2B80-BBEEBASAABSA+AADCJBJC
| Place of Origin | Switzerland |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | 8F2B80-BBEEBASAABSA+AADCJBJC |
Product Details
Approval:
ATEX II1/2G Ex Ia
Housing:
GT18 Dual Compartment, 316L
Output Input:
FOUNDATION Fieldbus; Pulse/freq./switch Output
Calibration Flow:
0.10% Mass
Display; Operation:
SD03 4-line, Illum.; Touch Control + Data Backup Function
Electrical Connection:
Gland M20
Process Connection:
Cl.300 RF, 1.4404/316/316L, Flange ASME B16.5
Meas. Tube Mat., Wetted Parts Surface:
Stainl. Steel, Not Polished
Highlight:
Proline Promass Coriolis Flowmeter
,316L Housing Coriolis Flow Meter
,0.10% Coriolis Mass Flow Meter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
Proline Promass Coriolis Flowmeter 8F2B80-BBEEBASAABSA+AADCJBJC
Product Description
Model: 8F2B80-BBEEBASAABSA+AADCJBJC
| Feature | Specification |
|---|---|
| Approval | BB ATEX II1/2G Ex ia |
| Output/Input | E FOUNDATION Fieldbus; pulse/freq./switch output |
| Display/Operation | E SD03 4-line, illum.; touch control + data backup function |
| Housing | B GT18 dual compartment, 316L |
| Electrical Connection | A Gland M20 |
| Measuring Tube Material | S AStainl. steel, not polished |
| Process Connection | ABS Cl.300 RF, 1.4404/316/316L, flange ASME B16.5 |
| Calibration Flow | A 0.10% Mass |
| Operation Language Display | AA English |
| Customized Parameterization | DC Output 1, liquid |
| Test/Certificate | JB Pressure test, internal procedure, test report |
| Test/Certificate | JC Inspection certificate 3.1, EN10204 (material certificate wetted parts+ sensor housing) |
| HS-Code | 90268020 |
| Country of Origin | CH |
| Country of Dispatch | CH |
Specs at a Glance
Max. measurement error
- Mass flow (liquid): ±0.1 %
- Volume flow (liquid): ±0.1 %
- Mass flow (gas): ±0.25 %
- Density (liquid): ±0.0005 g/cm³
Measuring range
0 to 70,000 kg/h (0 to 2570 lb/min)
Medium temperature range
- Standard: -50 to +150 °C (-58 to +302 °F)
- Option: -50 to +205 °C (-58 to +401 °F)
Max. process pressure
PN 100, Class 600, 63K
Wetted materials
- Measuring tube: 1.4539 (904L); 1.4404; Alloy C22, 2.4602 (UNS N06022)
- Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Field of Application
Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times ensured by Heartbeat Technology.
- Measuring principle operates independently of physical fluid properties such as viscosity or density
- Highest measurement performance for liquids and gases in a wide range of applications
Device Properties
- Mass flow: measured error ±0.1 %
- Medium temperature up to +205 °C (+401 °F)
- Nominal diameter: DN 8 to 80 (3/8 to 3")
- Loop-powered technology
- Robust dual-compartment housing
- Plant safety: worldwide approvals (SIL, Haz. rea)
Benefits
- Highest process safety - immune to fluctuating and harsh environments
- Fewer process measuring points - multivariable measurement (flow, density, temperature)
- Space-saving installation - no in/outlet run needs
- Convenient device wiring - separate connection compartment
- Safe operation - no need to open the device due to display with touch control, background lighting
- Integrated verification - Heartbeat Technology
Proline Promass F 200 with highest measurement performance for liquids and gases
