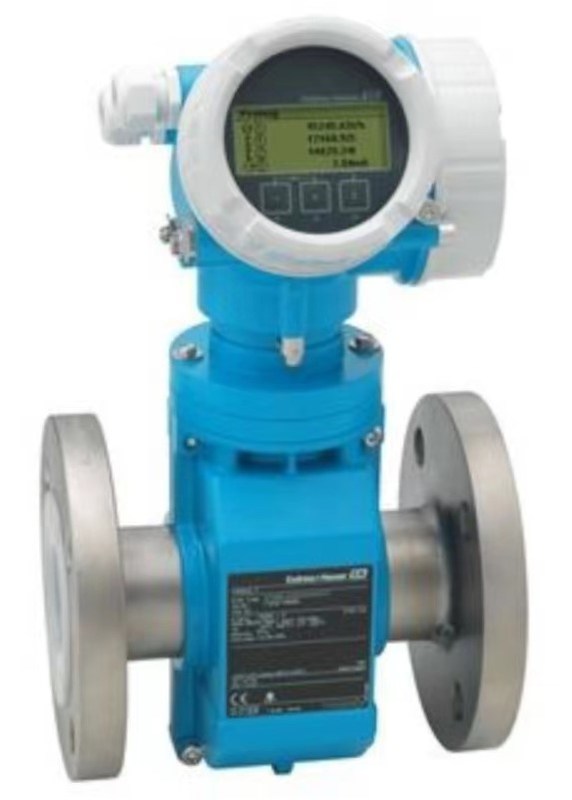

Proline Promag PTFE Liner Electromagnetic Flowmeter 5P2B1F-AAACCAEA1K0A
|
Proline Promag PTFE Liner Electromagnetic Flowmeter 5P2B1F-AAACCAEA1K0A
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | 5P2B1F-AAACCAEA1K0A |
Product Details
Liner:
PTFE
Output:
4-20mA HART
Approval:
Non-hazardous Area
Housing:
GT20 Dual Compartment, Alu, Coated
Electrodes:
1.4435/316L
Calibration Flow:
0.5%
Electrical Connection:
Gland M20
Highlight:
PTFE Liner Electromagnetic Flowmeter
,Proline Promag Electromagnetic Flowmeter
,Proline Promag Electromagnetic Water Flow Meter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
Proline Promag PTFE Liner Electromagnetic Flowmeter 5P2B1F-AAACCAEA1K0A
Product Description
5P2B1F-AAACCAEA1K0A Proline Promag P 200 Electromagnetic Flowmeter
| Model | 5P2B1F-AAACCAEA1K0A |
|---|---|
| Approval | AA - Non-hazardous area |
| Output | A - 4-20mA HART |
| Display; Operation | C - SD02 4-line; push buttons + data backup function |
| Housing | C - GT20 dual compartment, alu, coated |
| Electrical Connection | A - Gland M20 |
| Liner | E - PTFE |
| Process Connection | A1K - Cl.150, carbon steel, flange ASME B16.5 |
| Electrodes | 0 - 1.4435/316L |
| Calibration Flow | A - 0.5% |
| HS-Code | 90261021 |
| Country of origin | FR |
| Country of dispatch | FR |
Specs at a glance
Max. measurement error
Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range
4 dm3/min to 1100 m3/h (1 to 4850 gal/min)
4 dm3/min to 1100 m3/h (1 to 4850 gal/min)
Medium temperature range
Liner material PFA: -20 to +150 °C (-4 to +302 °F)
Liner material PTFE: -40 to +130 °C (-40 to +266 °F)
Liner material PFA: -20 to +150 °C (-4 to +302 °F)
Liner material PTFE: -40 to +130 °C (-40 to +266 °F)
Max. process pressure
PN 40, Class 300, 20K
PN 40, Class 300, 20K
Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Field of application
Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology ensures process safety at all times.
- The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
- Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device properties
- Nominal diameter: max. DN 200 (8")
- All common Ex approvals
- Liner made of PTFE or PFA
- Loop-powered technology
- Robust two-chamber housing
- Plant safety: worldwide approvals (SIL, Haz. area)
Benefits
- Versatile applications - wide variety of wetted materials
- Energy-saving flow measurement - no pressure loss due to cross-section constriction
- Maintenance-free - no moving parts
- Convenient device wiring - separate connection compartment
- Safe operation - no need to open the device due to display with touch control, background lighting
- Integrated verification - Heartbeat Technology
