Proline Promag 10W Electromagnetic Flow Meter 80 Degree With Polyurethane Liner
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Model Number | 10W1H-HC0A1AA0A4AA |
10W Electromagnetic Flow Meter
,80 Degree Electromagnetic Flow Meter
,Polyurethane Liner E&H Instrument

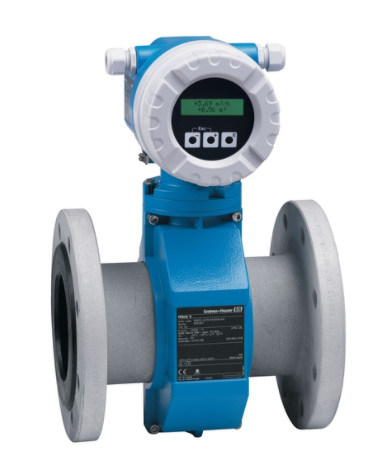

The Endress+Hauser Proline Promag 10W is a cost-efficient electromagnetic flowmeter designed for basic water and wastewater applications. With international approvals including drinking water certification, it offers reliable measurement for a wide range of industrial applications.
| Key Specification | Value |
|---|---|
| Max. Measurement Error | ±0.5% o.r. ± 2 mm/s (±0.5% o.r. ± 0.08 in/s) |
| Measuring Range | 9 dm³/min to 110,000 m³/h (2.5 gal/min to 700 Mgal/day) |
| Medium Temperature Range | 0 to +80°C (+32 to +176°F), -20 to +50°C (-4 to +122°F) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Wetted Materials | Liner: Polyurethane; Hard Rubber |
| Model | 10W1H-HC0A1AA0A4AA |
| Shipping Weight | 18kg |
| Origin | France |
- Flexible engineering with fixed or lap-joint process connections
- Reliable measurement accuracy even with 0 x DN inlet run
- Improved plant availability through industry-compliant design
- Cost-effective solution for easy applications and direct integration
- Clear process information display for safe operation
- Full compliance with IEC/EN/NAMUR standards
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity, making it ideal for:
- Elementary measurement tasks such as raw water intake
- Basic water and wastewater applications
Device properties include international drinking water approvals, IP68 protection (Type 6P enclosure), 2-line display with push buttons, and available as compact or remote version with HART protocol.
