Vibronic E&H Instrument Endress Hauser Liquiphant FTL31 Point Level Detection
|
Vibronic E&H Instrument Endress Hauser Liquiphant FTL31 Point Level Detection
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Model Number | FTL31-AA4U2BAWSJ |
Product Details
Highlight:
Point Level Detection Endress Hauser Liquiphant
,FTL31 Endress Hauser Liquiphant
,Liquiphant E&H Instrument
Payment & Shipping Terms
Minimum Order Quantity
1
Price
195
Packaging Details
CARTON
Delivery Time
10WEEKS
Payment Terms
T/T
Supply Ability
1000PCS
Product Description

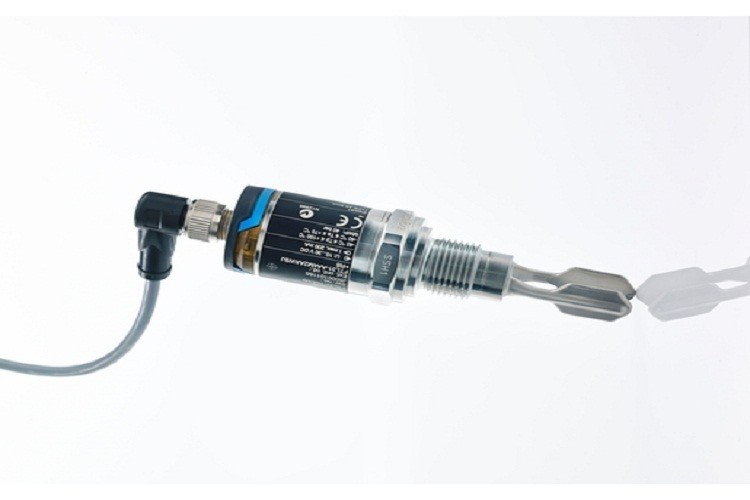

Vibronic E&H Instrument Endress Hauser Liquiphant FTL31 Point Level Detection
E+H Vibronic Point Level Detection Liquiphant FTL31
Point Level Switch For Liquids
Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill prevention or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
| Process Temperature: | -40 °C ... 150 °C (-40 °F ... 302 °F) |
|---|---|
| Process Pressure Absolute / Max. Overpressure Limit: | Vacuum ... 40 Bar (Vacuum ... 580 Psi) |
| Min. Density Of Medium: | >0,7g/cm³ (>0,5g/cm³ Optional) |
| Measuring Principle: | Vibration Liquids |
| Characteristic / Application: | Level Switch For Liquids And Is Used In Tanks, Vessels And Pipes. |
| Supply / Communication: | 20 ... 253V AC/DC, 2-wire 10 ... 30V DC-PNP 3-wire |
| Ambient Temperature: | -40 °C ... 70 °C (-40 °F ... 158 °F) |
| Origin: | Germany |
Key Features
- Compact: Smallest vibronic sensor in the market
- Safe: Continuous self-monitoring and reliable switching independent of media properties
- Easy: No calibration required, plug & play operation with IO-Link connectivity
Specifications at a Glance
Process temperature
-40 °C ... 150 °C (-40 °F ... 302 °F)
Process pressure absolute / max. overpressure limit
Vacuum ... 40 bar (Vacuum ... 580 psi)
Min. density of medium
>0,7g/cm³ (>0,5g/cm³ optional)
