Proline Promag E&H Instrument , 10W Endress Hauser Electromagnetic Flow Meter 10W1H
|
Proline Promag E&H Instrument , 10W Endress Hauser Electromagnetic Flow Meter 10W1H
| Place of Origin | France |
| Brand Name | Endress+Hauser |
| Certification | ROHS |
| Model Number | 10W1H-HC0A1AA0A4AA |
Product Details
Max. Measurement Error:
±0,5% O.r. ± 2 Mm/s (±0,5% O.r. ± 0,08 In/s)
Measuring Range:
9 Dm3/min To 110 000 M3/h (2.5 Gal/min To 700 Mgal/day)
Medium Temperature Range:
'0 To +80 °C (+32 To +176 °F), –20 To +50 °C (–4 To +122 °F)
Max. Process Pressure:
PN 40, Class 300, 20K
Wetted Materials:
Liner: Polyurethane; Hard Rubber
Origin:
France
Model:
10W1H-HC0A1AA0A4AA
Shipping Weight:
18kg
Highlight:
Proline Promag E&H Instrument
,Promag E&H Instrument
,10W Endress Hauser Electromagnetic Flow Meter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

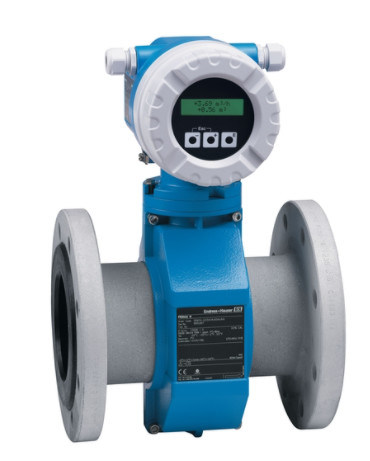

Endress+Hauser Proline Promag 10W Electromagnetic Flowmeter 10W1H
Flowmeter for basic water and wastewater applications with a highly cost-efficient transmitter. Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10W offers accurate measurement of liquids for a wide range of applications.
It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10W is available as compact or remote version.
Key Specifications
| Parameter | Value |
|---|---|
| Max. measurement error | ±0.5% o.r. ± 2 mm/s (±0.5% o.r. ± 0.08 in/s) |
| Measuring range | 9 dm³/min to 110,000 m³/h (2.5 gal/min to 700 Mgal/day) |
| Medium temperature range | 0 to +80°C (+32 to +176°F), -20 to +50°C (-4 to +122°F) |
| Max. process pressure | PN 40, Class 300, 20K |
| Wetted materials | Liner: polyurethane; hard rubber |
Product Benefits
- Flexible engineering - sensor with fixed or lap-joint process connections
- Reliable measurement - accurate measured values even with 0 x DN inlet run
- Improved plant availability - sensor compliant with industry-specific requirements
- Cost-effective - designed for easy applications and direct integration
- Safe operation - display provides easy readable process information
- Fully industry compliant - IEC/EN/NAMUR
Field of Application
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity. Suitable for elementary measurement tasks such as raw water intake.
Device Properties
- International drinking water approvals
- Degree of protection IP68 (Type 6P enclosure)
- 2-line display with push buttons
- Device as compact or remote version
- HART communication
