Cm42 E&H Instrument , 1 Channel Endress Hauser Liquiline M Cm42
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | CM42-MEA000EAZ00 |
Cm42 E&H Instrument
,M Cm42 E&H Instrument
,1 Channel Endress Hauser Liquiline M Cm42

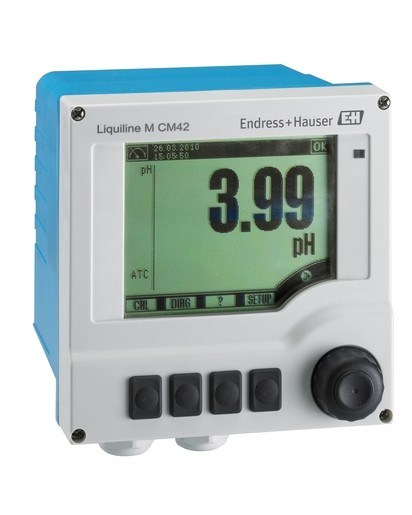

Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline's intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.
| Input | One or two channel transmitter (with one reference connection) |
|---|---|
| Output | 1/2 x 4 to 20 mA, HART, Profibus PA, FF Additional second output possible, also later |
| Ingress protection | IP66, IP67 or NEMA 4X |
Amperometric oxygen measurement
Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas
Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering
Connection of analog or digital Memosens sensors
Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol. Liquiline is developed acc. to the international safety standard IEC 61508
Plastic or stainless steel housing with EPDM sealings
Plastic housing: 144 x 144 x 148 mm (5.67 x 5.67 x 5.83 inch)
Stainless Steel: 174 x 174 x 134 mm (6.85 x 6.85 x 5.28 inch)
