E+H Orbipac CPF81D , Digital PH Sensor Orbipac CPF81D-7LH11
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | CPF81D-7LH11 |
Product Details
Measurement Range:
PH 0 To 14
Process Temperature:
Version LH: 0 To 110 °C (32 To 230 °F) Version NN: 0 To 80 °C (32 To 170 °F)
Process Pressure:
1 To 10 Bar Abs At 80 °C (15 To 145 Psi At 176 °F)
Measuring Principle:
Potentiometric
Application:
Flotation, Leaching, Neutralization, Outlet Monitoring
Material:
Housing: PPS
Origin:
Germany
Shipping Weight:
1kg
Shipping Term:
EXW
Highlight:
E+H orbipac cpf81d
,22mm orbipac cpf81d
,CPF81D digital ph sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

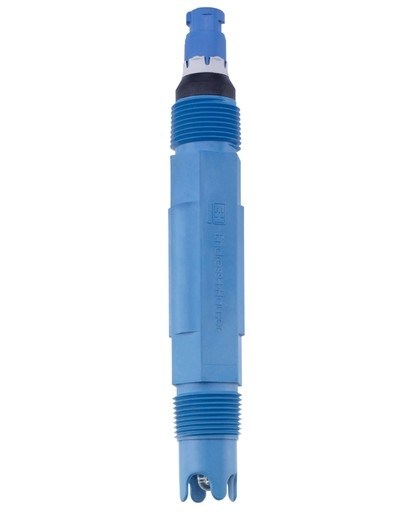

E+H Orbipac CPF81D, Digital PH Sensor Orbipac CPF81D-7LH11
E+H Digital pH sensor Orbipac CPF81D-7LH11 Memosens compact electrode
Orbipac CPF81D is the digital, simple solution for harsh environments. It measures reliably and accurately even in fibrous media and at high flow rates. With its integrated assembly, the electrode saves space and time during flow or immersion installation. Thanks to Memosens digital technology, CPF81D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.
Features and Specifications
| Measuring principle | Potentiometric |
|---|---|
| Application | Flotation, leaching, neutralization, outlet monitoring |
| Characteristic | Resistant against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4" |
| Measurement range | pH 0 to 14 |
| Measuring principle | Gel-compact electrode with double chamber reference system, kalium nitrate bridge electrolyte and PTFE-diaphragm |
| Design | Compact electrode in PPS housing with NPT 3/4" process connection |
| Material |
Housing: PPS pH electrode: lead-free membrane glass Double chamber reference system: KNO3 and KCl/AgCl |
| Dimension |
Diameter: 22 mm (0.87 inch) Length (protection guard, long shaft): 150 mm (5.91 inch) Length (flat membrane): 140 mm (5.51 inch) |
| Process temperature |
Version LH: 0 to 110 °C (32 to 230 °F) Version NN: 0 to 80 °C (32 to 170 °F) |
| Process pressure | 1 to 10 bar abs at 80 °C (15 to 145 psi at 176 °F) |
| Temperature sensor | Pt1000 |
| Ex certification | (optional) FM IS NI Cl. I Div.1&2, Groups A-D |
| Connection | Memosens plug |
| Ingress protection | IP68 |
