ATEX Endress Hauser Ultrasonic Flow Meter Time Of Flight Prosonic FMU43-APG2A2
|
ATEX Endress Hauser Ultrasonic Flow Meter Time Of Flight Prosonic FMU43-APG2A2
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU43-APG2A2 |
Product Details
Measuring Principle:
Ultrasonic
Characteristic / Application:
Compact Ultrasonic Transmitter
Supply / Communication:
4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
Accuracy:
+/- 4 Mm Or +/- 0.2 %of Set Measuring Range 1)
Ambient Temperature:
-40 °C ... 80 °C (-40 °F ... 176 °F)
Certificates / Approvals:
ATEX, FM, CSA, NEPSI
Origina:
Germany
Warranty:
12 Months
Highlight:
FMU43 Endress Hauser Ultrasonic Flow Meter
,ATEX Endress Hauser Ultrasonic Flow Meter
,20ma e&h ultrasonic flow meter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

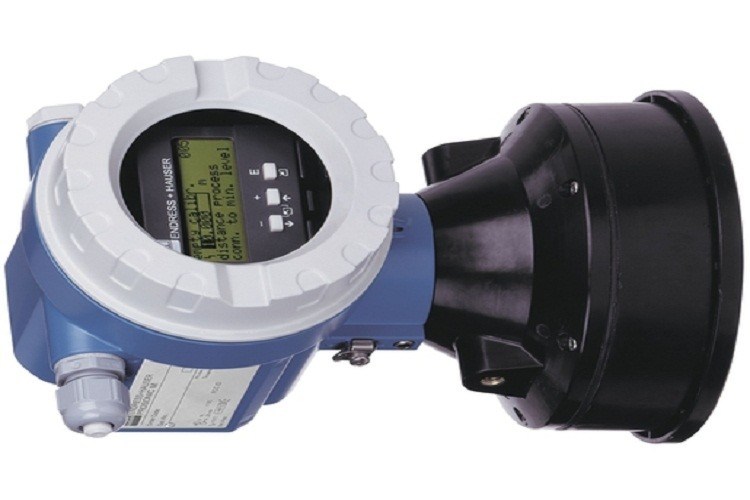

ATEX Endress Hauser Ultrasonic Flow Meter Time Of Flight Prosonic FMU43-APG2A2
Time-of-Flight Prosonic FMU43-APG2A2
Estimated Lead Time: Usually ships in 1 - 10 working days.
Manufacturer: Endress+Hauser
Product Details
- FMU43 - Product designation Ultrasonic Level Measurement
- A - Certificates: Variant for non-hazardous area
- P - Process connection/material: Flange DN 100/ANSI 4"/JIS 16K100, PP (universal slip-on flange included)
- G - Power supply/communication: 4 wire, 90...253 VAC / 4-20mA HART
- 2 - Display / on-site operation: 4-line display VU331, Envelope curve display on site
- A - Housing: Aluminium F12 housing coated to IP68 NEMA 6P
- 2 - Screw union/entry: M20x1.5 screw union
- Weight: approx. 3.5 kg (7.72 lbs)
- Shipping Weight: 5 kg
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 15m. The Prosonic FMU43 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Specifications
| Feature | Specification |
|---|---|
| Accuracy | +/- 4 mm or +/- 0.2% of set measuring range |
| Process temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Process pressure absolute / max. overpressure limit | 0.7 bar ... 2.5 bar abs (10 psi ... 36 psi) |
| Max. measurement distance | 7 m (23 ft) |
| Main wetted parts | unsaturated polyester, 316 Ti |
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB.
Q: SHIPPING:
A: We can shipping all over the world via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range: Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer, Valves, Analysis meter, Positioner, Acuator, etc.
