Endress Hauser E&H Instrument Ultrasonic Time Of Flight Prosonic FMU42-APB2A22A
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU42-APB2A22A |
E&H FMU42
,20ma E&H Instrument
,FMU42 E&H Instrument

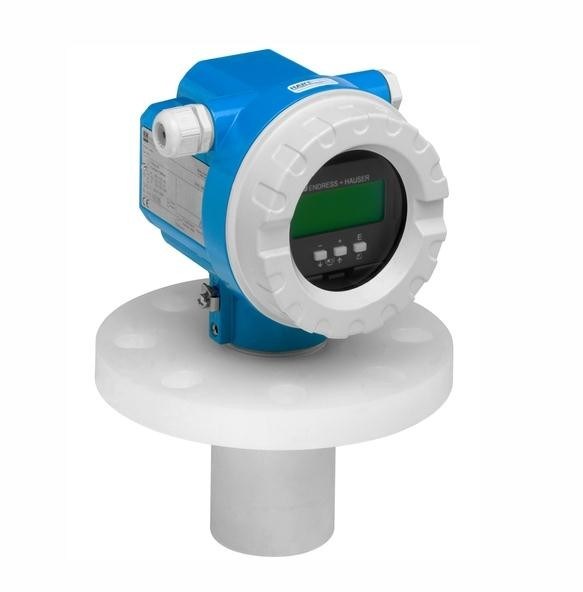

The E+H Ultrasonic Measurement Time-Of-Flight Prosonic FMU42-APB2A22A is a cost-effective solution for sophisticated level measurement in liquids and bulk solids up to 10m. This non-contact measurement device is suitable for various industrial applications including storage tanks, agitators, stockpiles, and conveyor belts.
- Manufacturer: Endress+Hauser
- Product No.: FMU42-APB2A22A
- Type: Ultrasonic measurement Time-of-Flight Prosonic FMU42
- Approval: Non-hazardous area
- Process Connection: UNI flange 3"/DN80/80, PP max 2.5bar abs./36psia
- Power Supply: 2-wire, 4-20mA HART
- Operation: 4-line display VU331 with envelope curve display
- Housing: F12 Alu, coated, IP68 NEMA6P
- Cable Entry: Gland M20 (EEx d > thread M20)
- Process Sealing: FKM Viton
- Weight: approx. 3kg (6.62lbs)
| Parameter | Value |
|---|---|
| Accuracy | +/- 4 mm or +/- 0.2% of set measuring range |
| Process temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Process pressure | 0.7 bar ... 2.5 bar abs (10 psi ... 36 psi) |
| Max. measurement distance | 5 m (16 ft) |
| Main wetted parts | PVDF |
The Prosonic FMU42 sensor is designed for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. It features linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
- Competitive pricing and fast delivery
- Extensive industry experience
- Highly trained technical staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible and personalized service
- Reliable global shipping options
A: Yes, they are new and original.
A: One-year warranty.
A: Yes, available certificates depend on the specific product. Please check with our sales team for details.
A: We accept T/T, Alipay, PayPal in EURO, USD, and RMB.
A: We ship worldwide via DHL, UPS, FedEx, TNT and other major carriers.
Transmitters, Safety barriers, Flow meters, Probes, Sensors, Transducers, Valves, Analysis meters, Positioners, Actuators, and more.
