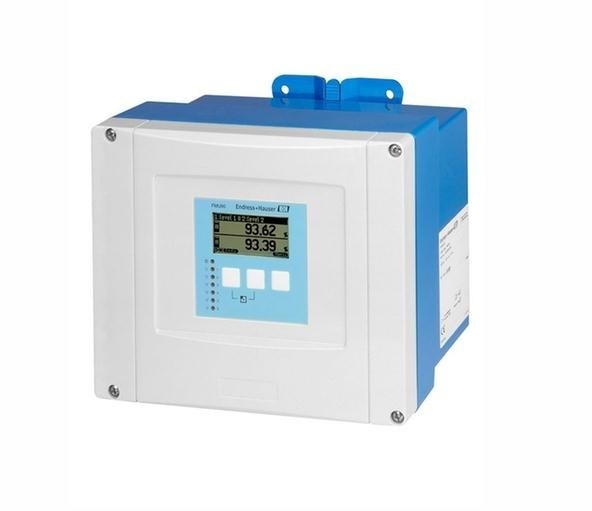

FMU90 E&H Instrument , Ultrasonic Endress Hauser Prosonic S Fmu90 In Housing
|
FMU90 E&H Instrument , Ultrasonic Endress Hauser Prosonic S Fmu90 In Housing
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU90-R11CA111AA3A |
Product Details
Measuring Principle:
Ultrasonic
Specialities:
Protection Class IP 66 / NEMA 4x
Supply / Communication:
90 ... 253 VAC 10.5 ... 32 VDC Up To 2x 4...20mA HART Profibus DP
Accuracy:
+/- 2mm + 0.17% Of Measured Distance
Ambient Temperature:
-40 °C ... 60 °C (-40 °F ... 140 °F)
Communication:
Up To 2x 4 ... 20 MA HART Profibus DP
Model:
FMU90-R11CA111AA3A
Origin:
Germany
Highlight:
FMU90 E&H Instrument
,S Fmu90 E&H Instrument
,IP66 Ultrasonic Endress Hauser Prosonic S Fmu90
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
FMU90 E&H Instrument, Ultrasonic Endress Hauser Prosonic S Fmu90 In Housing
Product Description
Ultrasonic Measurement Time-Of-Flight Prosonic FMU90-R11CA111AA3A Transmitter In Housing
Manufacturer Details
Manufacturer: Endress+Hauser
Product No: FMU90-R11CA111AA3A
Technical Specifications
- Product type: Ultrasonic measurement Time-of-Flight Prosonic FMU90
- Transmitter in housing for field or top hat rail mounting for up to 2 sensors FDU90/91/92/93/95
- R- Approval: Non-hazardous area
- 1-Application: Level + pump control, alternating
- 1-Housing, Material: Field mounting PC, IP66 NEMA4x
- C-Operation: Illuminated display + keypad
- A-Power Supply: 90-253VAC
- 1-Level Input: 1x sensor FDU9x/8x
- 1-Switch Output: 1x relay, SPDT
- 1-Output: 1x 0/4-20mA HART
- A-Additional Input: W/o
- A-Datalog Function: Basic version
- 3-Language: EN, ZH, JA, KO, TH, ID
- A-Additional Option: Basic version
Weight Specifications
Field housing: approx. 1.6 to 1.8 kg (3.53 to 3.97 lbs); depending on instrument version
Housing for DIN rail: approx. 0.5 to 0.7 kg (1.10 to 1.54 lbs); depending on instrument version
Separate display and operating module: approx. 0.5 kg (1.10 lbs)
Shipping Weight: 4 Kg
Technical Details
Measuring principle: Ultrasonic
Characteristic/Application: Separated version with Field housing or top hat rail housing for control cabinet instrumentation, up to 6 relays for pump/rake/limit control, 1 or 2 channel version
Specialities: Protection Class IP 66 / NEMA 4x, automatic sensor recognition of FDU9x sensors, option: flow measurement for open channel and weirs or additional pump control functions
Supply/Communication: 90 ... 253 VAC, 10.5 ... 32 VDC, up to 2x 4...20mA HART, Profibus DP
Accuracy: +/- 2mm + 0.17% of measured distance
Ambient temperature: -40 °C ... 60 °C (-40 °F ... 140 °F)
Communication: up to 2x 4 ... 20 mA HART, Profibus DP
Certificates/Approvals: ATEX, CSA
Options: Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display
Components: Sensors FDU9x
