E&H Prosonic Ultrasonic Level Transmitter Prosonic FMU41-ARB2A2
| Place of Origin | GERMANY |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU41-ARB2A2 |
Product Details
Accuracy:
+/- 2 Mm Or +/- 0,2 % Of Set Measuring Range
Process Temperature:
-40 °C ... 80 °C (-40 °F ... 176 °F)
Main Wetted Parts:
PVDF
Measuring Principle:
Ultrasonic
Max. Measurement Error:
Low Accuracy
Outputs:
4...20mA(Hart),PA,FF
Inputs:
2-wire 16-36V DC 4-wire 16-36V DC 90-253V AC 50/60Hz
Degree Of Protection:
IP68
Highlight:
Prosonic ultrasonic level transmitter
,FMU41 ultrasonic level transmitter
,E&H Ultrasonic Measurement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

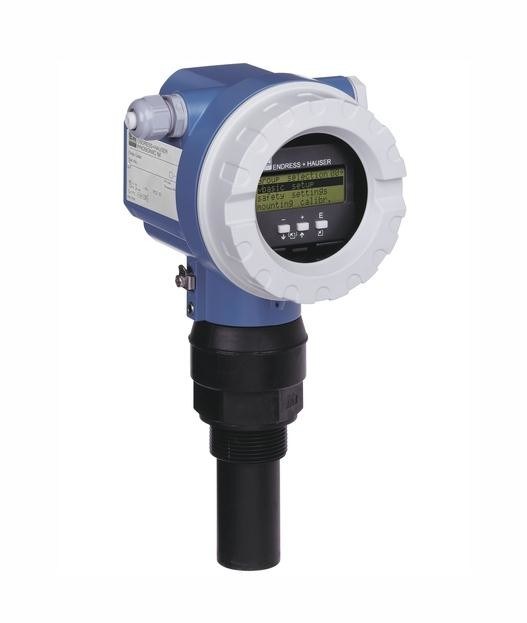

E&H Prosonic Ultrasonic Level Transmitter Prosonic FMU41-ARB2A2
Product Description
Ultrasonic Measurement Time-Of-Flight Prosonic FMU41-ARB2A2 Cost Effective Device
Technical Specifications
| Manufacturer | Endress+Hauser |
| Product name | Ultrasonic measurement Time-of-Flight Prosonic FMU41 |
| Product no | FMU41-ARB2A2 |
| A-Approval | Non-hazardous area |
| R-Process Connection | Thread ISO228 G2, PVDF |
| B-Power Supply; Output | 2-wire; 4-20mA HART |
| 2-Operation | 4-line display VU331, envelope curve display on site |
| A-Housing | F12 Alu, coated, IP68 NEMA6P |
| 2-Cable Entry | Gland M20 (EEx d > thread M20) |
| Weight kg (lbs) | approx. 2.6 (5.73) |
| Shipping Weight | 3.6 Kg |
Additional Information
The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Performance Specifications
| Accuracy | +/- 2 mm or +/- 0,2 % of set measuring range |
| Process temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Process pressure absolute / max. overpressure limit | 0.7 bar ... 3 bar abs (10 psi ... 44 psi) |
| Max. measurement distance | Max. measurement distance |
| Main wetted parts | PVDF |
Common Models
| FMU40-ANG2A2 | FMU41-ARB2A2 | FMU860-R1A1A1 | FDU81-RG2A |
| FMU861-R1B1A1 | FDU80-RG2A | FMU862-R1A1A1 | FMU862-R1A1A1 |
| FDU81-RG1A | FMU90-R11CA131AA1A | FDU81-RG2A | FMU231A-AA22 |
| FDU81-RG3A | FMU862-R1E1A1 | FDU81-RG4A | FDU80-RG8A |
| FMU230E-AA32 | FMU90-R11CA131AA1A | FMU231E-AA32 | FDU92-RG3A |
| FMU40-ARB2A2 | FTU231E-AA22 | FMU40-ANB1A2 | FMU860-R1A2A1 |
| FMU232E-AA42 | FDU84-RG1 | FMU40-ANB2A2 | FMU40-SNB1A4 |
| FDU80-RG2S | FDU82-RG3 | FMU231A-AA31 | FDU86-RG2 |
| FMU860-R1EB1 | FMU860-R1A1B1 | FDU83-RN3 | FAU40-2N |
| FDU80-RG2A | FMU40-ANB2A2 | FMU41-ARB2A2 | FMU43-APG2A2 |
Our Advantage
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range: Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
