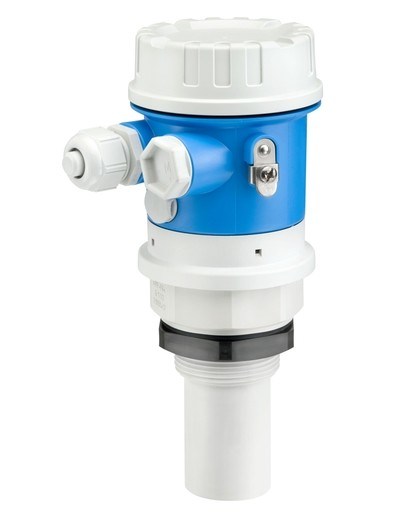

Ultrasonic Measurement Fmu30-AAHEAAGGF Cost Effective All-Round Instrument
|
Ultrasonic Measurement Fmu30-AAHEAAGGF Cost Effective All-Round Instrument
| Place of Origin | Germany |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | FMU30-AAHEAAGGF |
Product Details
Measuring Principle:
Ultrasonic
Characteristic / Application:
Compact Ultrasonic Transmitter
Supply / Communication:
2-wire
Accuracy:
+/- 3 Mm Or +/- 0.2 % Of Set Measuring Range
Ambient Temperature:
-20 °C ... 60 °C (-4 °F ... 140 °F)
Main Wetted Parts:
PP/EPDM
Model:
FMU30-AAHEAAGGF
Origin:
Germany
Highlight:
Ultrasonic measurement instrument
,Cost-effective E&H instrument
,FMU30-AAHEAAGGF ultrasonic meter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Ultrasonic Measurement FMU30-AAHEAAGGF Cost Effective All-Round Instrument
Product Details
Manufacturer: Endress+Hauser
Product No.: FMU30-AAHEAAGGF
Product type: Ultrasonic measurement Time-of-Flight Prosonic
Technical Specifications
| AA - Approval | Non-hazardous area |
| H - Display Operating | Envelope curve display on site; push button |
| E - Electrical Connection | Gland M20, IP68 |
| AA - Sensor; Max range; Blocking Distance | 1-1/2"; 5m liquid/2m solid; 0.25m |
| GGF - Process connection | Thread ISO228 G1-1/2, PP |
| Shipping weight | 3.5 Kg |
Key Features
- Cost effective all-round instrument for level applications in liquids and bulk solids
- Proven software algorithms with warning and alarm messages displayed on four-line plain text display
- Envelope curve display for quick and accurate error diagnostics
- Wide range of applications from sewage treatment plants to storage tanks
Technical Specifications at a Glance
| Accuracy | +/- 3 mm or +/- 0.2% of set measuring range |
| Process temperature | -20°C ... 60°C (-4°F ... 140°F) |
| Process pressure absolute / max. overpressure limit | 0.7 bar ... 3 bar abs (10 psi ... 44 psi) |
| Max. measurement distance | Sensor 1-1/2": 2 m (6.6 ft) Sensor 2": 3.5 m (11 ft) |
| Main wetted parts | PP/EPDM |
Key Benefits
- Quick and simple commissioning via menu-guided onsite operation with four-line plain text display (7 languages)
- Envelope curves on the on-site display for simple diagnosis
- Linearization function (up to 32 points) for unit conversion
- Non-contact measurement method minimizes service requirements
- Installation possible from thread G 1½ or 1½ NPT upwards
- Integrated temperature sensor for automatic sound velocity correction
Our Advantages
- Competitive prices and fast delivery
- Extensive industry experience
- Highly trained staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible and personalized service
- Reliable worldwide shipping options
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, they are new and original.
Q: How long is the warranty?
A: One-year warranty.
Q: Can you provide certificates?
A: Yes, it depends on the product. Please check details with our sales team.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EURO, USD, RMB.
Q: What are your shipping options?
A: We ship worldwide via DHL, UPS, FedEx, TNT and other carriers.
Product Range
Transmitter, Safety barriers, Flow meters, Probe, Sensor, Transducer, Valves, Analysis meter, Positioner, Actuator, etc.
