Cus52d E&H Instrument , EPDM Endress Hauser Turbimax CUS52D
| Place of Origin | Germany |
| Brand Name | E+H |
| Certification | RoHs |
| Model Number | CUS52D-AA1AA3 |
Product Details
Measuring Principle:
Single Beam Scattered Light
Saline Water:
Utilities Of All Industries
Measurement Range:
0.000 To 4000 FNU
Material:
Stainless Steel Version: 1.4404
Plastic Version:
Sensor Head: PEEK, Shaft: PPS
Optical Windows:
Sapphire
O-rings:
EPDM
Highlight:
Cus52d E&H Instrument
,EPDM E&H Instrument
,10bar Endress Hauser Turbimax CUS52D
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Cus52d E&H Instrument, EPDM Endress Hauser Turbimax CUS52D
Product Overview

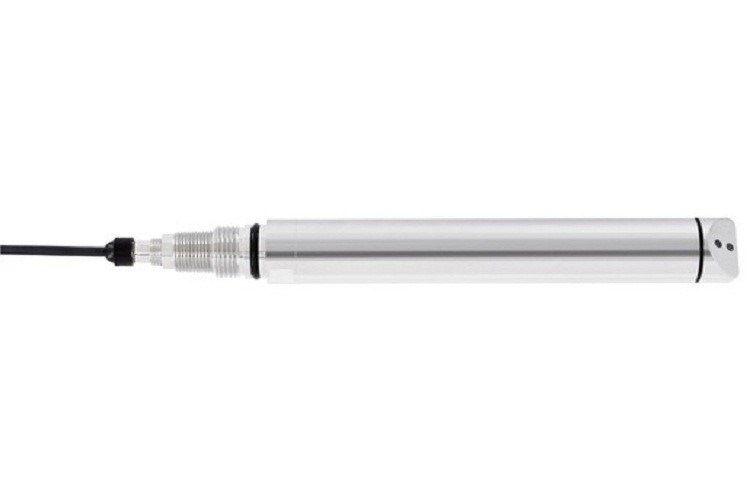

E+H Turbidity Sensor Turbimax CUS52D-AA1AA3 Hygienic Memosens Sensor
| Manufacturer | Endress+Hauser |
|---|---|
| Product No. | CUS52D-AA1AA3 |
| Product Type | Turbidity sensor Turbimax |
| Approval | AA = Non-hazardous area |
| Measuring Method | 1 = ISO 7027, IR |
| Process Connection | A = Immersion sensor, thread G1, NPT3/4 |
| Adaption Cable | A = Fixed cable, crimp sleeves |
| Cable Length | 3 = 7m |
| Measurement Range | 0.000 to 4000 FNU |
| Design | Sensor, 40 mm, stainless steel |
| Dimensions | 40mm design, hygienic Clamp-version 320 x 40 mm |
| Process Temperature | -20 to 85 °C (0 to 185 °F) |
| Process Pressure | 0.5 to 10 bar abs (7.3 to 145 psi abs) |
| Output | Memosens |
| Weight | 1.56 Kg |
| Shipping Weight | 3kg |
Product Description
Hygienic Memosens sensor for turbidity measurement in drinking water, process water and utilities. Turbimax CUS52D is a smart sensor with lab accuracy that allows unattended operation of all turbidity measuring points in drinking water production and many other applications with fresh, process or salt water.
Key Benefits
- Measuring results like in the lab: Highly accurate and reliable monitoring of your water quality
- Turbidity measurement without product loss: Hygienic inline measurement preserves each drop of water
- Unattended operation: Intelligent design and practical accessories enable sophisticated self-cleaning
- Smart verification and calibration: Absolutely safe, liquid-free, without Formazin
- Great flexibility, simple handling: One sensor for all measuring points
- Improved process control: Individually adaptable sensor response time
- Fast commissioning: Factory calibration and Memosens technology allow plug & play integration
Field of Application
Turbimax CUS52D measures turbidity in:
- Drinking and process water: From inlet to outlet in water plants
- Raw water abstraction and control
- Distribution networks
- All quality control points in water production
- Saline water: Desalination plants and marine applications
- Wastewater treatment plants: Reuse of outlet water
- Utilities in all industries: From inlet to outlet in water production
