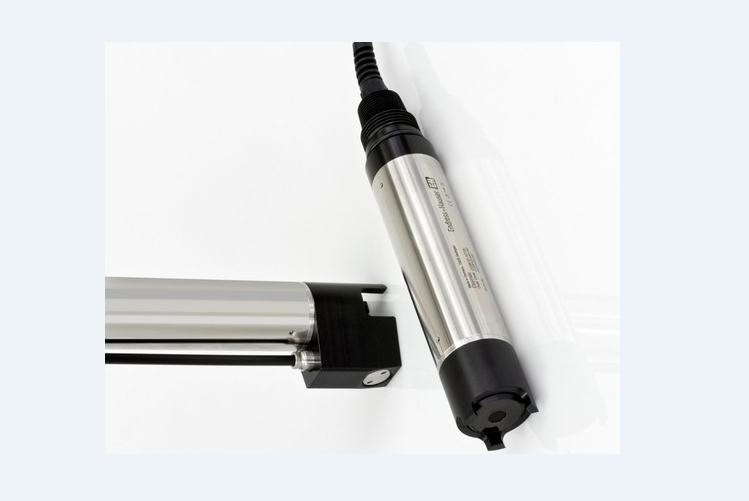

Digital Endress Hauser Oxygen Sensor COS61-A1F0 Memosens
| Place of Origin | Germany |
| Brand Name | E+H |
| Certification | ROHS |
| Model Number | COS61-A1F0 |
Product Details
Measuring Principle:
Optical Oxygen Measurement
Application:
Aeration Tank, River Monitoring, Water Treatment, Fish Farming
Characteristic:
Digital, Optical Measurement Of Dissolved Oxygen Based On Fluorescence Quenching Measurement Possible In Still Water
Measurement Range:
0 To 20 Mg/l ,0 To 200 %SAT ,0 To 400 HPa
Material:
Sensor Shaft: Stainless Steel 1.4435 ,Membrane Cap: POM
Dimension:
Diameter: 40 Mm (1.57 Inch) ,Shaft Length: 186 Mm (7.32 Inch)
Process Temperature:
-5 To 60 °C (20 To 140 °F)
Process Pressure:
Max. 10 Bar Abs (Max. 145 Psi)
Highlight:
Digital Endress Hauser Oxygen Sensor
,40mm Endress Hauser Oxygen Sensor
,E&H Oxymax COS61
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Digital Endress Hauser Oxygen Sensor COS61-A1F0 Memosens
E & H Instrument Digital Oxygen Sensor Oxymax COS61-A1F0 Memosens
Oxymax COS61 is a high-performance oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling. The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement.
Product Details
- Product name: Oxygen sensor OXYMAX-W COS61
- Extended order code: COS61-A1F0
- A-Approval: Non-hazardous area
- 1-Cable Length: 7m
- F-Head: Thread G1, fixed cable
- 0-Accessory: w/o accessory
- Weight:
- With cable length 7 m (23 ft): 0.7 kg (1.5 lbs.)
- With cable length 15 m (49 ft): 1.1 kg (2.4 lbs.)
- With TOP68 plug-in connection: 0.3 kg (0.66 lbs.)
Materials
- Sensor shaft: stainless steel 1.4571 (AISI 316Ti)
- Cap with fluorescence layer: POM
- Fluorescence layer: Silicone
- Process connection: G1
- Sensor cable: shielded 7-core fixed cable or double-shielded coaxial cable with 4 pilot wires (with TOP68 plug connection)
- Maximum cable length: max. 100 m (330 ft, including cable extension)
- Temperature compensation: internal
- Interface: RS 485
- Shipping Weight: 2 Kg
Specifications
Measurement range
0 to 20 mg/l
0 to 200 %SAT
0 to 400 hPa
Process temperature
-5 to 60 °C
(20 to 140 °F)
Process pressure
Max. 10 bar abs
(Max. 145 psi)
