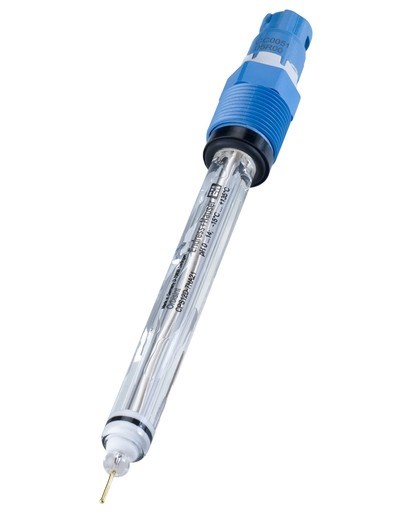

Digital Endress Hauser Orp Sensor Original CPS12D-7PA21
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | CPS12D-7PA21 |
Digital Endress Hauser Orp Sensor
,CPS12D Endress Hauser Orp Sensor
,16 bar orbisint cps12d
Hot selling E+H original CPS12D-7PA21 Digital ORP sensor Orbisint CPS12D
Manufacturer: Endress+Hauser
Product name: Orbisint CPS12D
Product type: Digital ORP sensor Orbisint CPS12D
Memosens glass electrode for standard application
Extended order code: CPS12D-7PA21
7-Version: Basic version
PA-Measuring surface: Platinum
2-Shaft length: 120 mm
1-Approval: Non-hazardous area
Weight: 0.1 kg / 0.2 lb.
- Electrode shaft: glass, suitable for processes
- Redox measuring element: platinum ring or gold pin
- Diaphragm: ring-shaped Teflon® diaphragm, sterilisable
- Reference system: Ag/AgCl lead with Advanced Gel 3 M KCl, AgCl free
- Shipping Weight: 2 Kg
Memosens glass electrode for standard applications. Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS12D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.
- Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
- Various measuring elements for application in oxidizing or reducing media
- Maximum process safety through non-contact, inductive signal transmission
- Enables predictive maintenance due to storage of sensor and process-specific data
- Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers)
- Incineration plants
Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, FM, CSA approval for use in hazardous areas.
| Parameter | Specification |
|---|---|
| ORP / Redox | Measuring principle: Sensor ORP / Redox |
| Application | Standard applications in process and environment Long-term monitoring of quiet stable processes |
| Characteristic | Digital, contactless electrode with Memosens technology Very robust, heavy-duty applications, high pressure version |
| Measurement range | -1500 mV to +1500 mV |
| Measuring principle | Gel compact electrode with teflon diaphragm and double gel reference Measuring part as gold-pin or platin ring |
| Design | All shaft lengths with temperature sensor Advanced gel technology Inductive, digital data transfer with Memosens technology |
| Material | Glass electrode with teflon diaphragm |
| Dimension | Diameter: 12 mm (0.47 inch) Shaft lengths: 120, 225 and 360 mm (4.72, 8.86 and 14.17 inch) |
| Process temperature | -15 to 135 °C (5 to 275 °F) |
| Process pressure | 0 to 16 bar (0 to 232 psi) |
| Temperature sensor | NTC 30k |
| Ex certification | ATEX II 1G EEX ia IIC T3/T4/T6 FM/CSA Class 1 Div.2, in combination with CM42 and CPM153 transmitters |
| Ingress protection | IP68 |
| Additional certifications | Biocompatibility validated according to ISO 10993-5:1993 and USP(current version) TÜV certificate for pressure resistance up to 16 bar with triple overpressure safety Electromagnetic compatibility complies with EN 61326:1997 |
