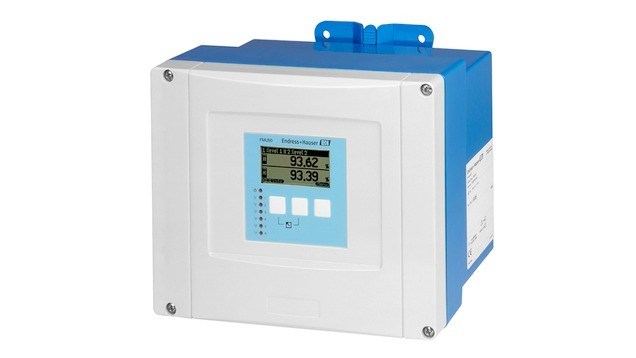

Prosonic E&H Instrument Ultrasonic FMU90 Transmitter
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | FMU90-R11CA212AA3A |
Product Details
Accuracy:
+/- 2mm + 0.17% Of Measured Distance
Model:
FMU90-R11CA212AA3A
Manufacturer:
Endress+Hauser
Product Type:
Ultrasonic Measurement Time-of-Flight Prosonic FMU92
R-Approval:
Non-hazardous Area
Power Supply:
R-Approval
Level Input:
2x Sensor FDU9x/8x
Switch Output:
1x Relay, SPDT
Highlight:
FMU90 E&H Instrument
,Prosonic E&H Instrument
,E&H fmu90 transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Prosonic E&H Instrument Ultrasonic FMU90 Transmitter
FMU90-R11CA212AA3A Ultrasonic measurement Time-of-Flight Prosonic FMU90 Transmitter
Manufacturer: Endress+Hauser
Product No.: FMU90-R11CA212AA3A
Product type: Ultrasonic measurement Time-of-Flight Prosonic FMU92
Product Specifications
| Feature | Description |
|---|---|
| R-Approval | Non-hazardous area |
| Application | Level + pump control, alternating |
| Housing, Material | Field mounting PC, IP66 NEMA4x |
| Operation | Illuminated display + keypad |
| Power Supply | 90-253VAC |
| Level Input | 2x sensor FDU9x/8x |
| Switch Output | 1x relay, SPDT |
| Output | 2x 0/4-20mA HART |
| Additional Input | W/o |
| Datalog Function | Basic version |
| Language | EN, ZH, JA, KO, TH, ID |
| Additional Option | Basic version |
Weight Information
- Field housing: approx. 1.6 to 1.8 kg (3.53 to 3.97 lbs); depending on instrument version
- Housing for DIN rail: approx. 0.5 to 0.7 kg (1.10 to 1.54 lbs); depending on instrument version
- Separate display and operating module: approx. 0.5 kg (1.10 lbs)
- Shipping Weight: 4 Kg
Additional Information
Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.
