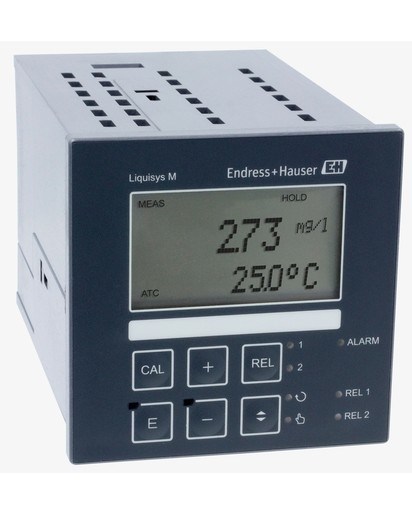

E+H COM223-DX0005 Dissolved oxygen transmitter Liquisys Compact panel device
|
E+H COM223-DX0005 Dissolved oxygen transmitter Liquisys Compact panel device
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | COM223-DX0005 |
Product Details
Input:
1-channel Transmitter
Output:
1x 0/4...20mA, Primary Value
Material:
Plastic
Model:
COM223-DX0005
Manufacturer:
Endress+Hauser
Power Supply:
230VAC
Product Type:
Dissolved Oxygen Transmitter Liquisys COM223
Highlight:
E+H dissolved oxygen transmitter
,Liquisys Compact panel device
,E&H dissolved oxygen sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
E+H COM223-DX0005 Dissolved Oxygen Transmitter Liquisys Compact Panel Device
Product Description
Manufacturer: Endress+Hauser
Product No.: COM223-DX0005
Product type: Dissolved oxygen transmitter Liquisys COM223
DX-Sensor Input; Software: COS41 (COS4/4HD); basic version
0-Power Supply: 230VAC
0-Output: 1x 0/4...20mA, primary value
05-Additional Contact: Not selected
Weight Specifications
Panel-mounted device Max: 0.7 kg (1.54 lbs.)
Field device Max: 2.3 kg (5.07 lbs.)
Shipping Weight: 3.3 Kg
Additional Information
Compact panel device for water, wastewater, utilities and fish farming. Liquisys COM223 is a standard transmitter for use with COS41 and COS61 oxygen sensors. It improves operational safety through continuous plausibility, process and sensor checks. Select from numerous hardware and software modules to adapt it exactly to your measuring task.
Key Benefits
- Enhanced operational safety with continuous process checks and customized alarm configuration
- Reliable oxygen control with current input for flow rate monitoring
- Easy operation with simple single-point calibration options
- Reduced maintenance with automatic cleaning function
- Flexible adaptation to all processes with numerous extensions
Field of Application
The Liquisys COM223 transmitter works with Oxymax COS41 and Oxymax COS61 dissolved oxygen sensors in environmental applications including:
- O2 control in aeration basins
- Drinking water monitoring
- Surface water monitoring
- Process water treatment
- Fish farming for optimum growth conditions
Technical Specifications
| Feature | Specification |
|---|---|
| Measuring Principle | Amperometric oxygen measurement |
| Application | Water, waste water, process |
| Design | 4-wire transmitter with two-line display |
| Material | Panel housing |
| Dimensions | 96mm x 96mm x 146mm (3.74x3.74x5.61 inches) |
| Input | 1-channel transmitter |
| Output | 0/4-20mA, HART, PROFIBUS |
| Certifications | CSA Gen. Purpose |
Common Models
| Model 1 | Model 2 |
|---|---|
| FMU40-ANG2A2 | FMU41-ARB2A2 |
| FMU860-R1A1A1 | FDU81-RG2A |
| FMU861-R1B1A1 | FDU80-RG2A |
| FMU862-R1A1A1 | FMU862-R1A1A1 |
| FDU81-RG1A | FMU90-R11CA131AA1A |
