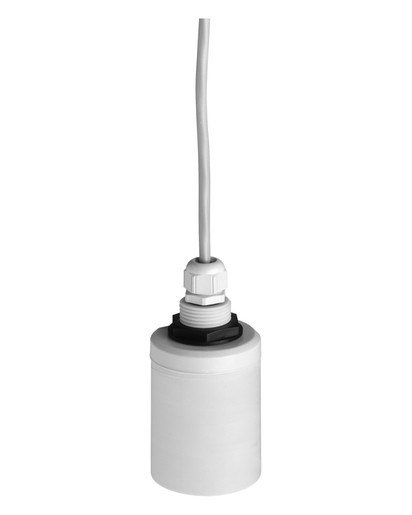

Endress+Hauser FDU91-RG2AA Ultrasonic measurement Time-of-Flight Prosonic
|
Endress+Hauser FDU91-RG2AA Ultrasonic measurement Time-of-Flight Prosonic
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | FDU91-RG2AA |
Product Details
Process Temperature:
-40 °C ... 80 °C (-40 °F ... 176 °F)
Process Pressure Absolute / Max. Overpressure Limit:
0.7 Bar ... 4 Bar Abs (10 Psi ... 58 Psi)
Max. Measurement Distance:
5 M (16ft)
Accuracy:
+/- 2mm + 0.17% Of Measured Distance
Main Wetted Parts:
PVDF (fully Welded IP68 / NEMA 6P)
Approval:
Non-hazardous Area
Process Connection:
Thread ISO228 G1, PVDF
Cable Length:
10m/32ft
Highlight:
Endress+Hauser ultrasonic flow meter
,Prosonic time-of-flight sensor
,E&H FDU91-RG2AA measurement device
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Endress+Hauser FDU91-RG2AA Ultrasonic measurement Time-of-Flight Prosonic
Product Description
Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 10m)
Product name: Prosonic S FDU91
Extended order code: FDU91-RG2AA
R-Approval: Non-hazardous area
G-Process Connection: Thread ISO228 G1, PVDF
2-Cable Length: 10m/32ft
A-Heater: W/o
A- Additional Option: Basic version
Shipping Weight: 2 Kg
Additional Information
The FDU91 ultrasonic sensor provides continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. It also measures flow in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suitable for explosion hazardous areas. Maximum measuring range in liquids 10m (33ft), solids 5m (16ft).
Key Benefits
- Integrated temperature sensor for Time-of-Flight correction ensures accurate measurements even with temperature changes
- Hermetically welded PVDF sensor for highest chemical resistance
- Designed for rough ambient conditions with separate installation from the transmitter (up to 300m)
- Reduced build-up formation due to self-cleaning effect
- Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
- Weather resistant and flood-proof (IP 68)
- Optional integrated heating prevents ice build-up at the sensor for reliable measurement
Field of Application
Sensor for continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.
- Process connection: Thread
- Temperature: -40 to +80°C (-40 to +176°F)
- Pressure: +0.7 to +4bar (+10 to +58psi)
- Maximum measuring range: Liquids 10m (33ft), solids 5m (16ft)
- Blocking distance: 0.3m (1ft)
- International explosion protection certificates
Features and Specifications
| Measurement Type | Continuous / Solids Continuous / Liquids Liquids |
|---|---|
| Measuring Principle | Ultrasonic |
| Characteristic / Application | Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300m in-between sensor and transmitter |
| Supply / Communication | 4-wire (HART, Profibus DP) |
| Accuracy | +/- 2mm + 0.17% of measured distance |
| Ambient Temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Process Temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Process Pressure | 0.7 bar ... 4 bar abs (10 psi ... 58 psi) |
| Main Wetted Parts | PVDF (fully welded IP68 / NEMA 6P) |
| Process Connection | G / NPT 1" |
| Blocking Distance | 0.3 m (1 ft) |
| Max. Measurement Distance | 5 m (16ft) |
| Communication | Transmitter: 4 ... 20 mA HART, Profibus DP |
| Certificates / Approvals | ATEX, FM, CSA, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC Ex |
Options
- Second 4...20mA output
- Components: Transmitter: FMU90
Common Models
| CLM223-CD0005 | CPS11D-7BT21 |
| CLM253-CD0005 | CKY10-A101 |
| COM223-DX0005 | CPM253-MR0105 |
| COM253-WX0005 | CPA250-A00 |
| COM253-DX0005 | CPS11-2BT2ESA |
| CPM223-MR0005 | CPF81D-7LH11 |
| CPM253-MR0005 | FTL31-AA4U3BAWSJ |
| CPM223-PR0005 | CLS15 |
| CPM253-PR0005 | CLS21 |
| COS41-2F | CUS31 |
| COS41-4F | COS41 |
| COS61-A1F0 | CPS11D-7BA21 |
| COS61-A2F0 | CCM253-EK0005 |
| COS61D-AAA1A3 | CUM223/253 |
| CPS11D-7AA21 | CLM223/253 |
| CPS11D-7BA2G | CPS41-1AC2SSA |
| CPS11D-7BA41 | CLS21-C1E4A |
| FTM51-AGG2M4A32AH | CLS21-C1N2A |
| FTM51-AGG2M4A32AH L=500mm | CLS21-C1N3A |
| CPS11D-7AS21 | CLS15-B1M2A |
| CPS11D-7BT2G | CLS15-A1M2A |
| CPS12D-7NA21 | CLS15-A3D1A |
| CPS12D-7PA21 | CLS16 |
| CPS11-2BA2ESA | CLS50 |
| CPS71D-7TB21 | CLS54 |
| CUS51D-AAD1A3 | CPS11 |
| CUS52D-AA1AA3 | CPS71 |
| CUS71D-AA1A | CPS12 |
| CYK10-A031 | CPS91 |
| CYK10-A051 | CPS441 |
| CYK10-A101 | CPS491 |
| CYK10-A151 | CPS16 |
| FDU91-RG1AA | CPS76 |
| FDU91-RG2AA | CPS96 |
| FDU91-RG3AA | CPS42 |
| FDU92-RG2A | CPS72 |
| FMU30-AAHEAAGGF | CPS92 |
| FMU30-AAHEABGHF | FTL20H-0TDJ2B |
| FMU40-ARB2A2 | FTL20H-0TCJ2BXI |
| FMU41-ARB2A2 | FTL20 |
