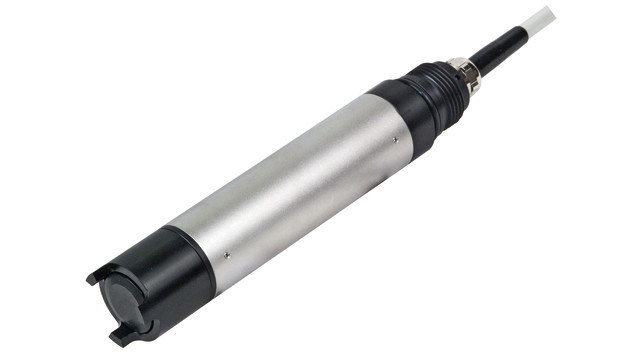

Endress+Hauser COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | COS61D-AAA1A3 |
Product Details
Measurement Range:
0 To 400 HPa
Process Temperature:
-5 To 60 °C (20 To 140 °F)
Process Pressure:
Max. 10 Bar Abs (Max. 145 Psi)
Order Code:
COS61D-AAA1A3
Product Name:
Oxymax COS61D
Approval:
Non-hazardous Area
Application/Measuring Range:
Oxygen 0...20mg/l
Sensor Adaption:
Fixed Cable; Crimp Sleeves
Highlight:
Endress+Hauser COS61D digital oxygen sensor
,Oxymax COS61D oxygen sensor
,E&H Instrument oxygen sensor with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Endress+Hauser COS61D-AAA1A3 Digital Oxygen Sensor Oxymax COS61D
Description
Memosens optical oxygen sensor for water, wastewater and utilities
| Product Name | Oxymax COS61D |
|---|---|
| Order Code | COS61D-AAA1A3 |
| AA-Approval | Non-hazardous area |
| Application/Measuring Range | Oxygen 0...20mg/l |
| Sensor Adaption | Fixed cable; crimp sleeves |
| Cable Length | 7m |
Technical Specifications
- Weight: With cable length 7 m (23 ft): 0.7 kg (1.5 lbs.) | With cable length 15 m (49 ft): 1.1 kg (2.4 lbs.)
- Materials: Process connection: G1, NPT 3/4" | Sensor cable: shielded 4-core fixed cable
- Cable Connection: Terminal connection | Optional: M12 plug
- Maximum Cable Length: 100 m (330 ft, including cable extension)
- Temperature Compensation: Internal
- Packing Dimensions: 37 × 35 × 70 cm
- Shipping Weight: 5.2 kg
Additional Information
The Oxymax COS61D is a high-performance, digital oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling. The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement. Thanks to Memosens digital technology, the Oxymax COS61D combines maximum process and data integrity, and facilitates simple lab calibration.
Benefits
- Minimum maintenance, maximum availability
- Fast, drift-free measurement for precise aeration control and process monitoring
- Long-term stability for increased process safety
- Outstanding performance in all aeration processes (SBR, Anamox, etc.)
- Chemical-free: no electrolyte handling
Field of Application
Oxymax COS61D measures the dissolved oxygen concentration in:
- Wastewater treatment plants: O2 control in the aeration basin | Process water treatment and monitoring
- Water works: Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.) | Water quality monitoring in rivers, lakes or seas
- Utilities of all industries: O2 control in the biological treatment | Process water treatment and monitoring
- Fish farming: O2 control for optimum growth conditions
Features and Specifications
- Measuring Principle: Optical oxygen measurement
- Application: Aeration tank, river monitoring, water treatment, fish farming
