Digital Cyk10 Memosens
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Certification | RoHs |
| Model Number | CYK10-A101 |
Product Details
Color:
Black
Cable Length:
10 M
Customize:
Yes
Product Type:
CYK10 Digital Measuring Cable
Approval:
Non-hazardous Area
Manufacturer:
Endress+Hauser
Cable Connection:
Wire Terminals
Shipping Weight:
1.5 Kg
Highlight:
Digital cyk10 memosens
,E+H cyk10 memosens
,Memosens cyk10 cable
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
Digital Cyk10 Memosens
Product Description

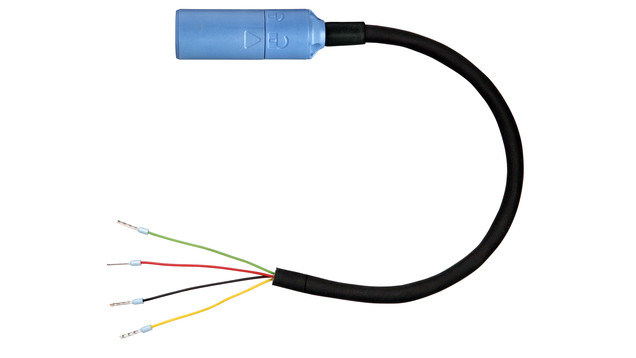

Endress+Hauser original product Digital measuring cable CYK10-A101
Description
Manufacturer: Endress+Hauser
Product No.: CYK10-A101
Product type: CYK10 Digital Measuring Cable
A-Approval: Non-hazardous area
10-Cable Length: 10m
1-Cable Connection: Wire terminals
Memosens data cable for all sensors with Memosens plug-in head
Key Features
- CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter
- Maximum process safety through non-contact, inductive and digital signal transmission
- No contact corrosion, absolutely watertight, no interference potential
- Increased availability of the measuring point with automatic error message if signal is lost
- More flexibility in plant planning and installation with cable length up to 100 m
- Approved for hazardous area use
- Shipping weight: 1.5 Kg
Benefits
- Absolute water-proof connection with no contact corrosion
- Galvanic isolation of transmitter and medium
- Safe and reliable signal transmission unaffected by moisture
Field of Application
The Memosens data cable CYK10 is applied in Memosens systems measuring:
- pH/ORP
- Dissolved oxygen (amperometric)
- Conductive conductivity
- Disinfection
Features and Specifications
Measuring principle: Potentiometric
Application: Measuring cable for contactless, inductive, digital transmission of measurement signals
Installation: Inductive plug-head for digital sensors with Memosens technology and wire terminals or M12 plug
Characteristic: Inductive, digital transmission of measurement signals and energy
Measurement range: High impedance cable not necessary
Design: Easy to handle Bajonett coupling, no open contacts, resistant against humidity
Material: Cable sheath: TPE, Junction box: aluminum
Dimension: Diameter: 6.3 mm (0.25 inch), Cores: 2x2 cores, twisted pairs, Length: up to approx. 100 m (328 ft)
Process temperature: -25 to 135 °C (-13 to 277 °F)
Process pressure: max. 50 bar/725 psi at 135°C/275°F
Temperature sensor: For digital sensors with inductive plug-head with and without temperature sensor
Ex certification: ATEX II 1G Ex ia IIC T3/T4/T6, FM, CSA IS Cl.1 Div 1 Gr. A-D, ATEX, NEPSI II 3G Ex nL IIC, TIIS
Ingress protection: IP68
Additional certifications: Also available as TÜV approved SIL version
Common Models
| CYK10-A031 | CPS91 | CLS50-A1B1 | PMP75 |
| CYK10-A051 | CPS441 | CPF81-LH11C2 | PMC51 |
| CYK10-A101 | CPS491 | CPF81-LH11D3 | PMP51 |
| CYK10-A151 | CPS16 | FMU90-R11CA111AA3A | PMP55 |
| FDU91-RG1AA | CPS76 | FMU90-R11CA131AA3A | PMC131 |
| FDU91-RG2AA | CPS96 | FMU90-R11CA212AA3A | PMP131 |
