Endress Hauser Suspended solids sensor Turbimax E+H Germany CUS51D-AAD1A3
|
Endress Hauser Suspended solids sensor Turbimax E+H Germany CUS51D-AAD1A3
| Place of Origin | Germany |
| Brand Name | Endress Hauser |
| Certification | RoHs |
| Model Number | CUS51D-AAD1A3 |
Product Details
Process Temperature:
-5 To 50 °C (23 To 122 °F)
Ambient Temperature::
-20 To 60 °C (-4 To 140 °F)
Measurement Range:
For Formazin: 0 To 4000 FNU
Model:
CUS51D-AAD1A3
Product Name:
Suspended Solids Sensor
Manufacturer:
Endress Hauser
Adaption Cable:
Endress Hauser
Application/Measuring Range:
Process Water; Solids
Highlight:
Endress Hauser suspended solids sensor
,Turbimax CUS51D sensor
,E+H Germany water quality sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Delivery Time
On request
Payment Terms
L/C, T/T
Supply Ability
100+pc+on stock
Product Description

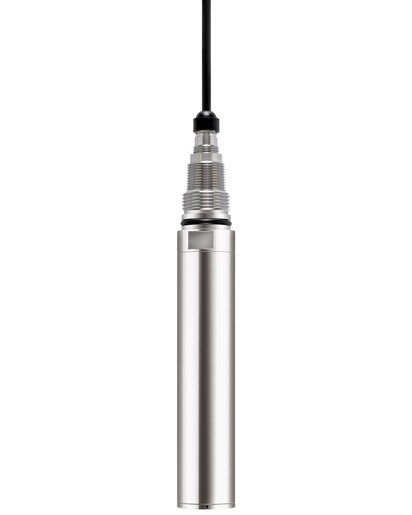

Endress Hauser Suspended solids sensor Turbimax E+H Germany CUS51D-AAD1A3
Product Overview
The Turbimax CUS51D is a Memosens sensor designed for suspended solids and turbidity measurement in water, wastewater and utilities. This smart sensor enables unattended operation across a wide range of process conditions with its robust design and self-cleaning functionality.
Key Specifications
- Product Name: Turbimax CUS51D
- Order Code: CUS51D-AAD1A3
- Approval: Non-hazardous area
- Application: Process water; solids
- Cable: Fixed cable with crimp sleeves (7m length)
- Process Connections: G1 and NPT ¾''
- Weight: Approx. 0.7 kg (1.5 lbs) without cable
- Materials: Stainless steel 1.4404/1.4571, sapphire optical windows, EPDM O-rings
Technical Specifications
| Measurement Range |
For formazin: 0 to 4000 FNU Display range up to 9999 FNU For sludge: 0 to 300 g/L (Achievable range depends on media) |
|---|---|
| Temperature Range |
Process temperature: -5 to 50°C (23 to 122°F) Ambient temperature: -20 to 60°C (-4 to 140°F) |
| Design | 40 mm sensor, stainless steel |
| Dimensions | 194 mm × 40 mm |
| Ingress Protection | IP68 (1 m/3.3 ft water column with 1N KCl during 60 days) |
Key Benefits
- One sensor for all applications - optimizes stockholding and simplifies lifecycle management
- Optimum adaptation to measuring tasks with integrated analytical models
- Fast commissioning with precalibrated and preconfigured settings
- Enables unattended operation with intelligent self-cleaning capabilities
- Fast sensor positioning with Flexdip holder and assembly system
Applications
Wastewater Treatment Plants:
- Solids content measurement in aeration, recirculation and sludge treatment
- Flocculent dosing
- Turbidity measurement in the outlet
Drinking and Process Water:
- Solids content measurement in sludge treatment
- Flocculent dosing
Industrial Utilities:
- Solids content measurement in aeration, recirculation and sludge treatment
- Flocculent dosing
Common Models
| CPS11D-7AS21 | CLS15-B1M2A | PMP131-A1401A1S | FMR245 |
| CPS11D-7BT2G | CLS15-A1M2A | PMC71-ANA1S2GHAAA | FMR250 |
| CPS12D-7NA21 | CLS15-A3D1A | PMC71-ANA1P2GHAAA | FMR530 |
| CPS12D-7PA21 | CLS16 | PMP135-A2G01A1T | FMR531 |
| CPS11-2BA2ESA | CLS50 | PMP71-ABA1X21GAAAA | FMR532 |
Our Advantages
- Competitive pricing and reliable delivery times
- Extensive industry experience
- Knowledgeable staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible service options
- Cost-effective shipping solutions
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, they are new and original.
Q: How long is the warranty?
A: One-year warranty.
Q: Can you provide certificates?
A: Yes, available depending on product - please check with our sales team.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EURO, USD, RMB.
Q: What are your shipping options?
A: Worldwide shipping via DHL, UPS, FedEx, TNT and other carriers.
