Absolute Pressure Siemens SITRANS Pressure Transmitter
|
Absolute Pressure Siemens SITRANS Pressure Transmitter
| Place of Origin | China Or France |
| Brand Name | SIEMENS |
| Certification | ROHS |
| Model Number | 7MF0330-1LR01-5AM2-ZA00+B11+E00 |
Product Details
Model:
7MF0330-1LR01-5AM2-ZA00+B11+E00
Packing:
Standard Siemens Carton
Accuracy:
0.065% Span
Approvals:
FM, CSA, ATEX, SIL, NSF
Output:
4-20 MA Output With HART Communications Standard
Response Time:
Response Times 105 MS For Pressure, 135 MS For Differential Pressure
Packing:
New And Original With Factory Sealed
Origin:
China
Highlight:
Absolute Pressure Siemens SITRANS Pressure Transmitter
,FM Siemens SITRANS Pressure Transmitter
,CSA Siemens SITRANS Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

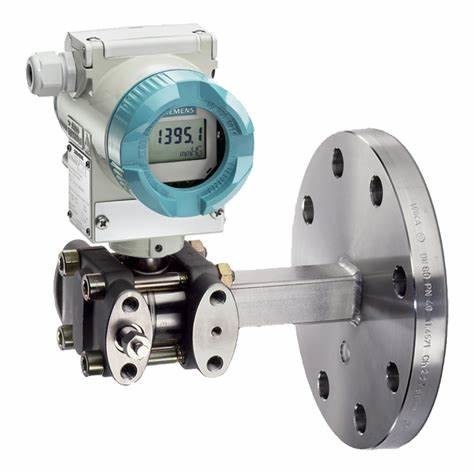

Siemens SITRANS 7MF0330 Absolute Pressure Transmitter
Product Description
The SITRANS P320 Pressure transmitter is designed for absolute pressure measurement (with differential pressure measuring cell) featuring HART (4...20 mA) communication. The measuring cell is filled with Silicone oil and offers a maximum measuring span of 1300 mbar (522 inH²O). The device features an oval flange with M10 (DIN 19213) fastening thread and is constructed with stainless steel 316L/1.4404 diaphragm and measuring cell.
Key Features
- Adjustable span: 0.12 (0.4"wc) to 10153 PSI (gauge pressure models), 0.4"wc to 435 PSID (differential pressure models)
- 4-20 mA output with HART communications standard
- Rangeability and turndown of up to 100:1
- Fast response times: 105 mS for pressure, 135 mS for differential pressure
- High accuracy to 0.065% span with long-term stability to 0.125% span per year for 5 years
- Four pushbuttons under nameplate cover for configuration changes
- 360° rotatable display with multiple viewing options
- Diagnostic functions in accordance with NAMUR NE107
- NEMA 4X/IP66/IP68 rated diecast aluminum or stainless steel enclosure
- Full compliance to SIL2 and SIL3 requirements per IEC 61508
- Multiple approvals available: FM, CSA, ATEX, SIL, NSF
Technical Specifications
Housing: Dual chamber device, die-cast aluminum
Process connections: Threaded, flanged, or flush-mount diaphragm
Display: Shows process variable in selected engineering units with 12-character free text message
Approvals: World (CE, RCM, EAC, FM, CSA, KCC)
Process connections: Threaded, flanged, or flush-mount diaphragm
Display: Shows process variable in selected engineering units with 12-character free text message
Approvals: World (CE, RCM, EAC, FM, CSA, KCC)
