RS485 HART 2700 Rosemount Micro Motion Flowmeters Transmitter
| Place of Origin | USA |
| Brand Name | Micro Motion |
| Certification | ROHS |
| Model Number | 2700I13DEZEZZZ |
Product Details
Origin:
USA
Manufacturer::
Micro Motion
Model:
2700I13DEZEZZZ
Product Nmae:
Prod-Flow-MicroMotion-1700-PDP-left Prod-Flow-MicroMotion-1700-PDP-right Micro Motion 1700-2700 Transmitters Straight View Image Prod-Flow-MicroMotion-1700-PDP-left Prod-Flow-MicroMotion-1700-PDP-right Micro Motion 1700-2700 Transmitters Straight View Imag
Warranty:
1 Year
Shipping Weight:
15kg
Analog:
MA W/ Bell 202 HART FO/DO RS485 HART And Modbus
Configurable I/O:
MA W/Bell 202 HART Configurable To MA, FO, Or DO (default MA)configurable To FO, DO, OrDI (default FO)
Material:
Painted Aluminum
Highlight:
Rosemount Micro Motion Flowmeters
,Micro Motion Flowmeters Transmitter
,Rosemount micro motion 2700 transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
RS485 HART 2700 Rosemount Micro Motion Flowmeters Transmitter
Product Description

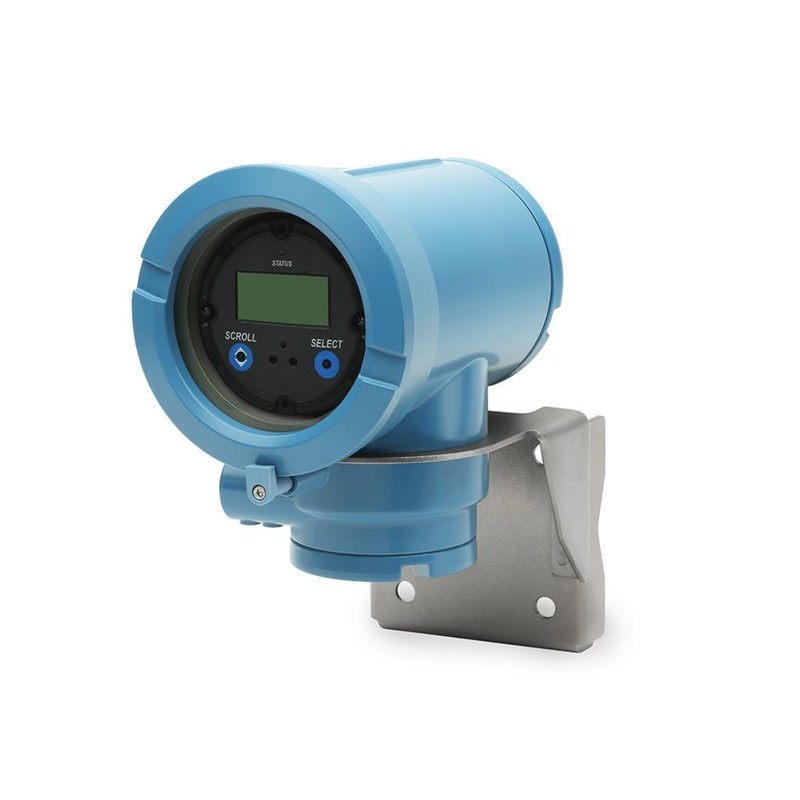

Micro Motion Field and Integral Mount Transmitter 2700I13DEZEZZZ
Part Number: 2700I13DEZEZZZ
Product Name: Micro Motion Field and Integral Mount Transmitter
Origin: USA
Manufacturer: Emerson
Specifications
| Housing | Polyurethane-painted cast aluminum or stainless steel; NEMA 4X (IP66) |
|---|---|
| Weight |
Painted aluminum, 4-wire remote: - with display: 8 lb (4 kg) - without display: 7 lb (3 kg) Painted aluminum, 9-wire remote: - with display: 14 lb (6 kg) - without display: 13 lb (6 kg) Stainless steel, 4-wire remote: - with display: 21 lb (10 kg) - without display: 20 lb (9 kg) View product data sheet for full details. |
| Mounting |
Integral or remote mounting options (stainless steel versions are remote mount only). May be remotely connected to any 4-wire or 9-wire Micro Motion sensor. View product data sheet for full details. |
| Available Outputs |
1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus 2700: - Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus - Configurable I/O: mA w/Bell 202 HART configurable to mA, FO, or DO (default mA) configurable to FO, DO, or DI (default FO) View product data sheet for full details. |
Features
- Maximize flexibility with integral or remote mounting
- Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
- Lower wiring costs and install easily and quickly
- Eliminate the need for additional instruments with concentration and net flow measurement
- Rely on custody-transfer approval and certification for SIL2 and SIL3
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
- Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
- Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
Common Models
| Model 1 | Model 2 |
|---|---|
| 2700C12ABUEZZZ | CMF300H999NAFZEZZX |
| 2700I13EFZEZAZ | CMF100M328NHGZEZZZ |
| 2700I13DEZEZZZ | CMF050M313NHGZEZZZ |
| 2700R11EBFEZAZ | CMF200M418NABZEZZZ |
| 2700I11EBMEZAZ | CMF300M355N2BZEZZZ |
| 2700I11EBFEZAZ | CMF300M426N3FZEZZZ |
| 2700R11EFZEZZZ | F025S113CABZEZZZZ |
| 8705THA140S1W0NDB3 | R025S113NCAZEZZZZ |
| 8732EST2A2ND | R100S128NCAZEZZZZ |
| 8732EST2A2ED | R100S128NQFZEZZZZ |
| 8711SSA040R1N0 | R050S113NCAZEZZZZ |
| 8712ESR1A1N0M4 | R200S418NCANEZZZZ |
| 8712ESR1A2N0M4 | F200S418CCAMEZZZZ |
| 8711SSA030R1N0 | F200S418CABZEZZZZ |
