Coriolis Micro Motion Flow Transmitter Flowmeters Emerson F100S ODM
|
Coriolis Micro Motion Flow Transmitter Flowmeters Emerson F100S ODM
| Place of Origin | Netherlands |
| Brand Name | Micro Motion |
| Certification | ROHS |
| Model Number | F100S128CCAZEZZZZ |
Product Details
Origin:
Netherlands
Color:
White
Product Name:
Micro Motion F100S Coriolis Meter
Size:
1 Inch
Manufacturer:
Micro Motion
HAZARDOUS APPROVALS:
Class I, Div. 1 Class I, Div. 2 Zone 1 Zone 2
Output:
HART/WIRELESSHART
MASS FLOW ACCURACY - (Liquid):
±0.20% Of Rate
MASS FLOW REPEATABILITY - (Liquid):
±0.050% Of Rate
SENSOR Maximum WORKING PRESSURE:
1,450 Psig (100 Barg)
Highlight:
ODM micro motion flow transmitter
,F100S micro motion flow transmitter
,F100S coriolis flow meter emerson
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

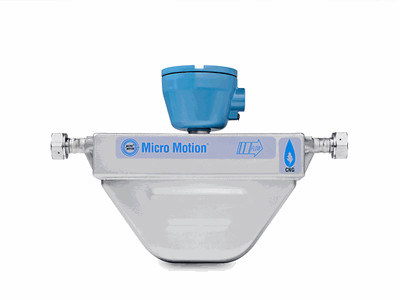

Coriolis Micro Motion Flow Transmitter Flowmeters Emerson F100S ODM
Micro Motion F100S Coriolis Meter, 316L Stainless Steel F100S128CCAZEZZZZ
Part Number: F100S128CCAZEZZZZ
Product Name: Micro Motion F100S Coriolis Meter
Origin: USA
Manufacturer: Micro Motion
Product Name: Micro Motion F100S Coriolis Meter
Origin: USA
Manufacturer: Micro Motion
Specifications
Micro Motion F100S Coriolis Meter, 1 Inch (DN25), 316L Stainless Steel
| Parameter | Specification |
|---|---|
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Control Accuracy (Liquid) | ±0.28% of rate (standard) ±0.25% of rate (optional) ±0.15% of rate (optional) |
| Volume Control Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
Meter Approvals, Calibrations & Certifications
- UL
- CSA
- IECEx
- NEPSI
- ATEX
- Ingress Protection
- EMC effects
Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter
Output Variables
- Mass & volume flow
- Net product content / flow
- Temperature
- Density
- Concentration
Local Display
- Standard user interface with 2-line LCD panel
- Two optical switches for local operation
- Glass or plastic lens options
Power
Self-switching AC/DC input, automatically recognizes supply voltage
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/Output Signals
Analog Output Option:
Not intrinsically safe
One active 4-20 mA output
One active frequency output
Frequency output can be configured as a discrete output
Not intrinsically safe
One active 4-20 mA output
One active frequency output
Frequency output can be configured as a discrete output
Configurable I/O Option:
Not intrinsically safe
One or two active 4-20 mA outputs
One or two active/passive frequency outputs
One or two active/passive discrete outputs
One discrete input
Not intrinsically safe
One or two active 4-20 mA outputs
One or two active/passive frequency outputs
One or two active/passive discrete outputs
One discrete input
Intrinsically Safe Option:
Intrinsically safe
One passive 4-20 mA output
One passive frequency output
Frequency output can be configured as a discrete output
Intrinsically safe
One passive 4-20 mA output
One passive frequency output
Frequency output can be configured as a discrete output
Foundation Fieldbus Option:
Intrinsically safe (or optionally non-incendive)
One Foundation fieldbus H1 output
Intrinsically safe (or optionally non-incendive)
One Foundation fieldbus H1 output
PROFIBUS-PA Option:
Intrinsically safe
One PROFIBUS-PA output
Intrinsically safe
One PROFIBUS-PA output
HART/WirelessHART
Bell 202 signal is superimposed on the primary milliamp output
HART available via THUM adapter
HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions
HART available via THUM adapter
HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions
Mounting Options
Field-mount:
• Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
• Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
• Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
• Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application Types
- Continuous process control
- Custody transfer
- Two-phase flow/entrained gas
- Meter verification
- SIS Certified
Hazardous Approvals
- Class I, Div. 1
- Class I, Div. 2
- Zone 1
- Zone 2
Common Models
| 2700C12ABUEZZZ | CMF300H999NAFZEZZX |
| 2700I13EFZEZAZ | CMF100M328NHGZEZZZ |
| 2700I13DEZEZZZ | CMF050M313NHGZEZZZ |
| 2700R11EBFEZAZ | CMF200M418NABZEZZZ |
| 2700I11EBMEZAZ | CMF300M355N2BZEZZZ |
| 2700I11EBFEZAZ | CMF300M426N3FZEZZZ |
| 2700R11EFZEZZZ | F025S113CABZEZZZZ |
| 8705THA140S1W0NDB3 | R025S113NCAZEZZZZ |
| 8732EST2A2ND | R100S128NCAZEZZZZ |
| 8732EST2A2ED | R100S128NQFZEZZZZ |
| 8711SSA040R1N0 | R050S113NCAZEZZZZ |
| 8712ESR1A1N0M4 | R200S418NCANEZZZZ |
| 8712ESR1A2N0M4 | F200S418CCAMEZZZZ |
| 8711SSA030R1N0 | F200S418CABZEZZZZ |
