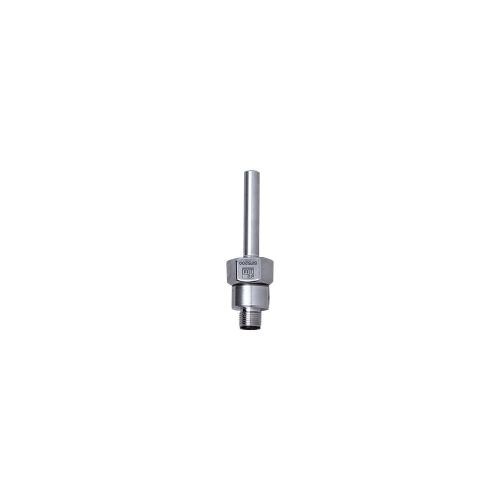

High Temperature 316L Level IFM Flow Sensor SF5200 M18x1.5
| Place of Origin | Germany |
| Brand Name | IFM |
| Certification | rohs |
| Model Number | SF5200 |
Product Details
Model:
SF5200
Product Name:
Flow Sensor
Origin:
Germany
Warranty:
12 Months
Medium Temperature:
-25...80°C
Media:
Liquids; Gases
Application:
High Temperature
Pressure Rating:
300Bar
Highlight:
316L ifm flow sensor
,SF5200 ifm flow sensor
,SF5200 ifm level sensor
Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
standard packing
Delivery Time
4-6weeks
Payment Terms
T/T
Supply Ability
500PCS/MONTH
Product Description
High Temperature 316L Level IFM Flow Sensor SF5200 M18x1.5
IFM SF5200 Flow sensor for connection to an evaluation unit SFD10ADB /US-100
Product Details
- Part Number: SF5200
- Product Name: Flow sensor
- Origin: Germany
- Manufacturer: IFM
Specifications
- Reliable monitoring of liquids and gases in pipes
- For connection to an evaluation unit
- Simple process connection via adapter
- Very high pressure resistance
- M12 connector for fast and easy connection
Product Characteristics
| Parameter | Value |
|---|---|
| Probe length L [mm] | 45 |
| Process connection | M18 x 1.5 Internal thread |
| Application | High temperature |
| Media | Liquids; Gases |
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 300 |
| Connection to control monitor | VS3000 |
Performance Data
| Media | Setting Range [cm/s] | Greatest Sensitivity [cm/s] |
|---|---|---|
| Liquids | 3...300 | 3...60 |
| Gases | 200...3000 | 200...800 |
Operating Conditions
| Parameter | Value |
|---|---|
| Max. temperature gradient of medium [K/min] | 300 |
| Response time [s] | 1...10 |
| Protection | IP 67 |
| Shock resistance | DIN IEC 68-2-27 40 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 10 g (55...2000 Hz) |
| MTTF [years] | 8213 |
Mechanical Data
| Parameter | Value |
|---|---|
| Weight [g] | 88.5 |
| Dimensions [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Material | Stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | Stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A |
| Pack quantity | 1 pcs. |
| Electrical connection | Connector: 1 x M12; Maximum cable length: 100 m |
