ROHS Electric AUMA Actuator Parts Multi Turn Actuator SA14.2-F10
|
ROHS Electric AUMA Actuator Parts Multi Turn Actuator SA14.2-F10
| Place of Origin | Germany |
| Brand Name | AUMA |
| Certification | ROHS |
| Model Number | SA14.2-F10 |
Product Details
Origin:
Germeny
Function:
Multi-turn
Torque Range:
From 10 Nm To 32,000 Nm
Modulating Torque Range:
From 15 Nm To 1,600 Nm
Output Speeds:
From 4 To 90 Rpm
Max. Number Of Starts:
1,200 C/h
Model:
SA14.2-F10
Shipping Weight:
30kg
Highlight:
ROHS AUMA Actuator Parts
,Multi Turn AUMA Actuator Parts
,ROHS multi turn actuator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

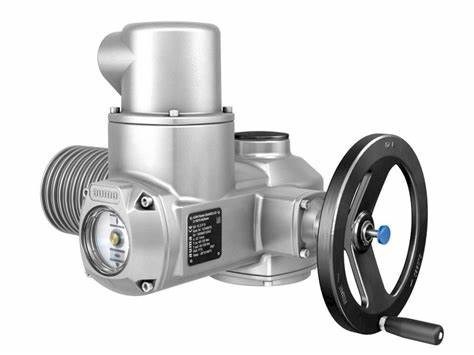

ROHS Electric AUMA Actuator Parts Multi Turn Actuator SA14.2-F10
AUMA Multi-turn SA Actuators SA14.2-F10
Part Number: SA14.2-F10
Product Name: AUMA Multi-turn SA Actuators
Origin: Germany
Actuators of the SA type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty.
Specifications
Actuators of type range SA/SAR can be combined with various controls from simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface.
Design Features
SA Series
- Torque range from 10 Nm to 32,000 Nm
- Output speeds from 4 to 180 rpm
- Limit and torque sensing
- Available with 3-ph AC, 1-ph AC and DC motors
- Handwheel for manual operation
SAR Series
- Torque range from 15 Nm to 4,000 Nm
- Modulating torque range from 15 Nm to 1,600 Nm
- Max. number of starts 1,200 c/h
- Output speeds from 4 to 90 rpm
- Limit and torque sensing
- Available with 3-ph AC, 1-ph AC motors
- Handwheel for manual operation
Product Details
| Item | Details |
|---|---|
| Place of delivery | EXW |
| Packing cost | Free |
| Unit weight | 30kg |
| Unit dimensions | 70 × 50 × 40cm (W × L × H) |
| Product condition | Genuine and brand new |
| Payment terms | TT |
| Warranty | 12 months |
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Are your goods new and original?
A: Yes, they are new and original.
Q: How long is the warranty?
A: One-year warranty.
Q: Can you provide certificates?
A: Yes, it depends on what product you request. Please check details with our sales.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EURO, USD, RMB.
Q: What are your shipping options?
A: We ship worldwide via DHL, UPS, FedEx, TNT and other carriers.
Our Product Range
Transmitter, Safety barriers, Flow meters, Probe, Sensor, Transducer, Valves, Analysis meter, Positioner, Actuator, etc.
