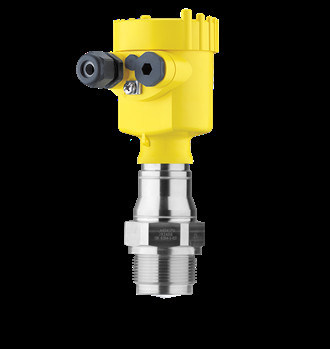

PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement
|
PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement
| Place of Origin | DE |
| Brand Name | vega |
| Model Number | PS69.AXCSABHXAMKRX |
Product Details
Approval:
For Ex-free Area
Electronics:
Two-wire 4 ... 20 MA/HART
Supplementary Electronics:
Without
Housing / Protection:
Aluminium Single Chamber / IP66/IP68 (0.2bar)
Max. Measuring Range:
120m
HS Code:
90318080
Highlight:
Continuous VEGA Level Meter
,VEGA Level Meter Radar Sensor
,PS69.AXCSABHXAMKRX
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement
The PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor provides continuous level measurement of bulk solids with high accuracy and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring range - Distance | 120 m [Meter - Foot] |
| Process temperature | -40 ... 200 °C [°C - °F] |
| Process pressure | -1 ... 20 bar [Bar - kPa - psi] |
| Accuracy | ± 5 mm / ± 0.2" |
| Frequency | 80 GHz |
| Beam angle | ≥ 3,5° |
| Version | with plastic horn antenna ø 80 mm Metal jacketed lens antenna |
| Materials, wetted parts | 316L, PP, PEEK |
| Threaded connection | G1½, 1½ NPT |
| Flange connection | ≥ DN80, ≥ 3" |
| Seal material | EPDM, FKM |
| Housing material | Plastic, Aluminium, Stainless steel (precision casting), Stainless steel (electropolished) |
| Protection rating | IP66/IP68 (0,2 bar), IP66/IP67, IP66/IP68 (1 bar) |
| Output | Profibus PA, Foundation Fieldbus, 4 … 20 mA/HART - two-wire, Modbus, 4 … 20 mA/HART - four-wire |
| Ambient temperature | -40 ... 80 °C |
Application Area
The VEGAPULS 69 radar sensor is designed for continuous measurement of bulk solids under various process conditions. Its compact design with small process fittings makes it ideal for small vessels or tight spaces, while the excellent signal focusing allows reliable use in large silos or vessels with many internal installations.
This sensor is particularly suitable for level measurement in very high silos, large bunkers and segmented vessels. The device can be equipped with either an encapsulated plastic antenna or a lens antenna integrated in the metal flange, allowing optimal adaptation to different application requirements.
Key Benefits
- High plant availability due to wear-free and maintenance-free operation
- Non-contact measuring principle eliminates maintenance requirements
- Reliable measurement performance unaffected by vapor, dust or noise
Frequently Asked Questions
Are you factory manufacturer or trade company?
Our manufacturer for control systems and instrumentation has over 10 years of experience. OEM & ODM services are available.
Can I get a sample before order in bulk? What is your MOQ?
Yes, we support sample orders.
What is the lead time?
Generally 5-20 days (based on quantity), with most models available from stock.
Where is your loading port?
Guangzhou Port, China.
What are your payments terms?
T/T, PayPal, Western Union
