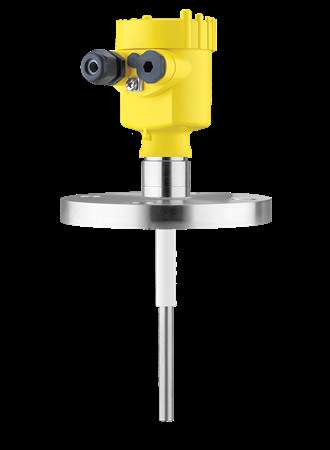

CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
|
CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
| Place of Origin | DE |
| Brand Name | vega |
| Model Number | CP62.XXBGARAMX |
Product Details
Measuring Unit For Lengths:
Metre / Millimetre
Version / Process Temperature:
Standard / -50...+200°C
Process Fitting / Material:
Thread G¾ PN64, DIN3852-A / 316L
Approval Directive / Scope:
None / World-wide
Electronics:
Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)
Housing / Protection:
Aluminium Single Chamber / IP66/IP67
Cable Entry / Cable Gland / Plug Connection:
M20x1.5 / With / Without
Highlight:
CP62 VEGA Level Meter
,Capacitive VEGA Level Meter
,CP62 ultrasonic level transmitter vega
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
CP62.XXBGARAMX VEGA Level Meter Capacitive Rod Probe For Level Detection
Technical Specifications
| Specification | Value |
|---|---|
| Measuring range - Distance | [Meter - Foot] |
| Process temperature | -50 ... 200 °C [°C - °F] |
| Process pressure | -1 ... 64 bar [Bar - kPa - psi] |
| Version | with screening tube PN1 |
| Standard | Materials, wetted parts |
| Threaded connection | ≥ G½, ≥ ½ NPT |
| Flange connection | ≥ DN25, ≥ 1" |
| Seal material | no media contact |
| Protection rating | IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) |
| Output | Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire |
| Ambient temperature | -40 ... 80 °C |
Application Area
For liquids and bulk solids, Sensor length up to 6 m
The VEGACAP 62 is a point level sensor for use in all areas of industry. The partly insulated probe is suitable for measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.
Your Benefits
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
- Universal use in all products
