PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX
|
PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX
| Place of Origin | GERMANY |
| Brand Name | VEGA |
| Model Number | SON62.XXAGHKNXX |
Product Details
Measuring Range - Distance:
8 M
Process Temperature:
-40 ... 80 °C
Process Pressure:
-0.2 ... 2 Bar
Accuracy:
± 4 Mm
Materials, Wetted Parts:
PVDF
Threaded Connection:
≥ G2, ≥ 2 NPT
Ambient Temperature:
-40 ... 80 °C
Highlight:
8m VEGA Level Meter
,PVDF VEGA Level Meter
,Ultrasonic Vega Level Measurement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

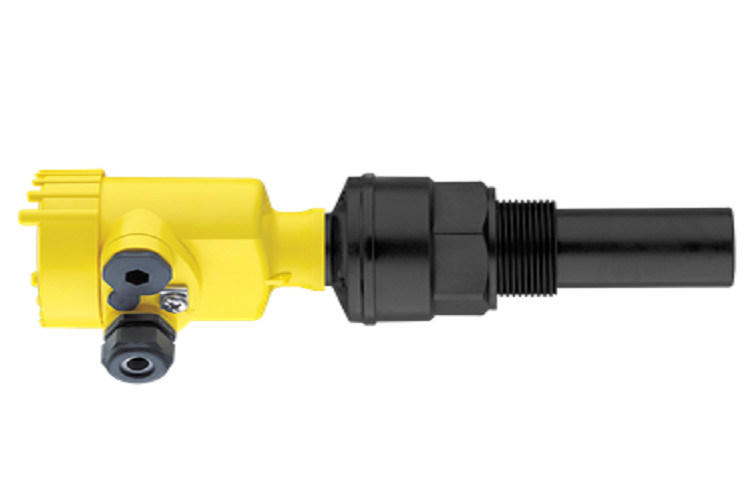

VEGA SON62.XXAGHKNXX Ultrasonic Sensor For Continuous Level Measurement
VEGASON 62
Ultrasonic sensor for continuous level measurement. Measures liquids up to 8 m and bulk solids up to 3.5 m away.
Application area
Extensive selection of electronics, housings, approvals. Process fittings: G2 or 2 NPT.
The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium.
For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.
Your benefit
- Price-favourable solution for simple applications
- Maintenance-free operation through non-contact measuring principle
- Reliable measurement independent of product features
Technical specifications
| Measuring range - Distance | 8 m |
| Process temperature | -40 ... 80 °C |
| Process pressure | -0.2 ... 2 bar |
| Accuracy | ± 4 mm |
| Materials, wetted parts | PVDF |
| Threaded connection | ≥ G2, ≥ 2 NPT |
Common Models
| VEGA PS61.XXAGPHAMAX | VEGA FX62.XXAGD1HAMXX M=13MM |
| VEGA PS66.XXHFK2HKMXX | VEGA SON62.CXAGHANAX |
| VEGA VB62.XXTGCRKMX | VEGA SON63.XXACVDMAX |
| VEGA PS66.XXHFC2HKMAX | VEGA PS61.XXANPHKMAX |
| VEGA SN62.XXAGVDMXX | VEGA VEGWELL52.XXA4ALD1DC1X |
| VEGA BR52.XXGG1DHKMXE | VEGA VEGASWING61.XXGBVXPRX |
| VEGA BR52.XXGNIBHKNAE | VEGA BR64.XXFT1EHVMX |
| VEGA TOR 256C.XA | VEGA CL63.XXFGDHVMXX |
| VEGA PS68.XXEGD2HKMAX | VEGA FX62.AGD1VDMXX |
| VEGA PS68.XXE1Q2BDMAX | VEGA PS66.XXHFKHHKMX |
