VEGA Level Meter
>
61 VEGA Level Meter , 2 Bar Vega Ultrasonic Level Transmitter 61-SN61.XXAGHKMXX
|
61 VEGA Level Meter , 2 Bar Vega Ultrasonic Level Transmitter 61-SN61.XXAGHKMXX
| Place of Origin | GERMANY |
| Brand Name | VEGA |
| Certification | rohs |
| Model Number | SN61.XXAGHKMXX |
Product Details
Measuring Range - Distance:
5 M
Process Temperature:
-40 ... 80 °C
Process Pressure:
-0.2 ... 2 Bar
Accuracy:
± 4 Mm
Materials, Wetted Parts:
≥ G1½, ≥ 1½ NPT
Explosion Protection:
Intrinsic Safety "i"
SIL Qualification:
SIL2
Model:
SN61.XXAGHKMXX
Highlight:
61 VEGA Level Meter
,2 bar Vega Ultrasonic Level Transmitter
,SIL2 Vega Ultrasonic Level Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description
61 VEGA Level Meter, 2 Bar Vega Ultrasonic Level Transmitter 61-SN61.XXAGHKMXX
Product Description

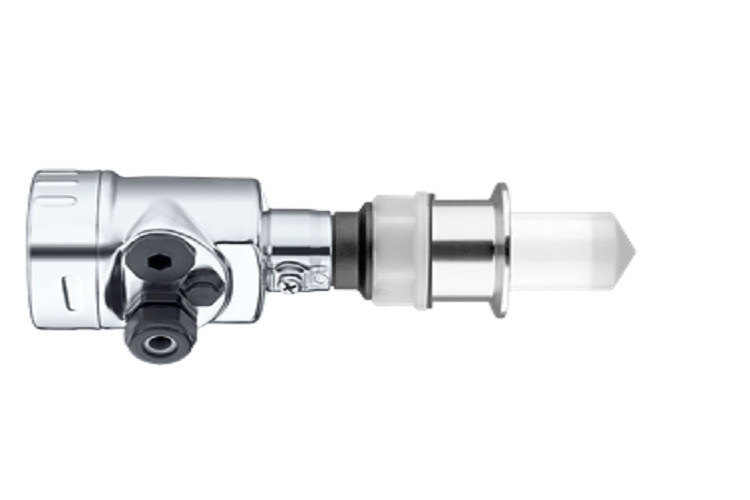

VEGASON 61-SN61.XXAGHKMXX Ultrasonic sensor for continuous level measurement
Part Number: SN61.XXAGHKMXX
Product Name: Ultrasonic sensor
Origin: Germany
Ultrasonic sensor for continuous level measurement
Measures liquids up to 5 m and bulk solids up to 2 m away
Application Area
The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications include measurement of liquids in storage tanks or open basins, and detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows setup without medium contact.
Process fittings: G1½ or 1½ NPT
Alternative Options
For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternatives.
Key Benefits
- Price-favorable solution for simple applications
- Maintenance-free operation through non-contact measuring principle
- Reliable measurement independent of product features
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring range - Distance | 5 m |
| Process temperature | -40 ... 80 °C |
| Process pressure | -0.2 ... 2 bar |
| Accuracy | ± 4 mm |
| Materials, wetted parts | PVDF |
| Threaded connection | ≥ G1½, ≥ 1½ NPT |
