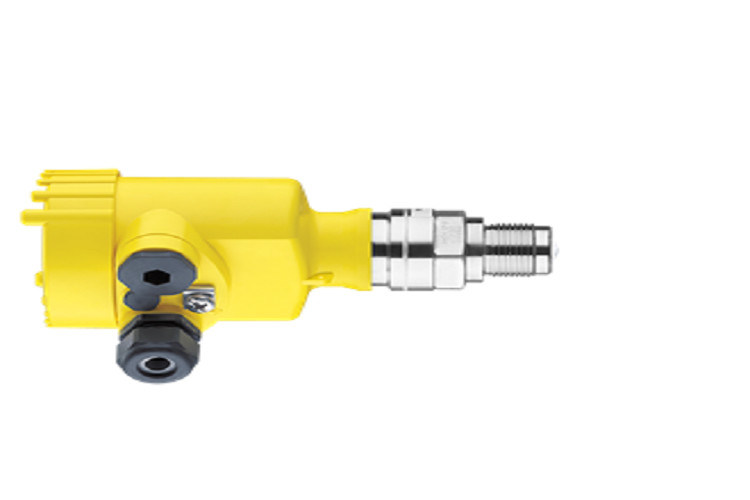

Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN

Part Number: VEGASWING 63.CAGBVXPN

Product Name: Vibrating level switch

Origin: Germany

Vibrating level switch with tube extension for liquids. For liquids (density: > 0.5 ... 2.5 g/cm³) - with tube extension.

The position of the switching point can be up to 6 m away from the installation site. Numerous process fittings, approvals as well as housing and electronics versions.

VEGASWING 63 is used as a universal level switch in all liquids. Independent of the mounting position it detects reliably with millimetre accuracy the level. The instrument can be used in vessels as empty or full detector, as approved overfill protection, dry run protection or pump protection. The position of the switching point is determined through the tube extension. The VEGASWING 63 offers high reliability and security in a wide application range.

• Precise and reliable function due to product-independent switching point
• Low maintenance costs
• Minimum time and cost expenditure thanks to simple setup without medium

• PFA
• 316L
• Alloy C22 (2.4602)
• Alloy 400 (2.4360)
• ECTFE
• Enamel

• Threaded connection: ≥ G¾, ≥ ¾ NPT
• Flange connection: ≥ DN25, ≥ 1"

1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
