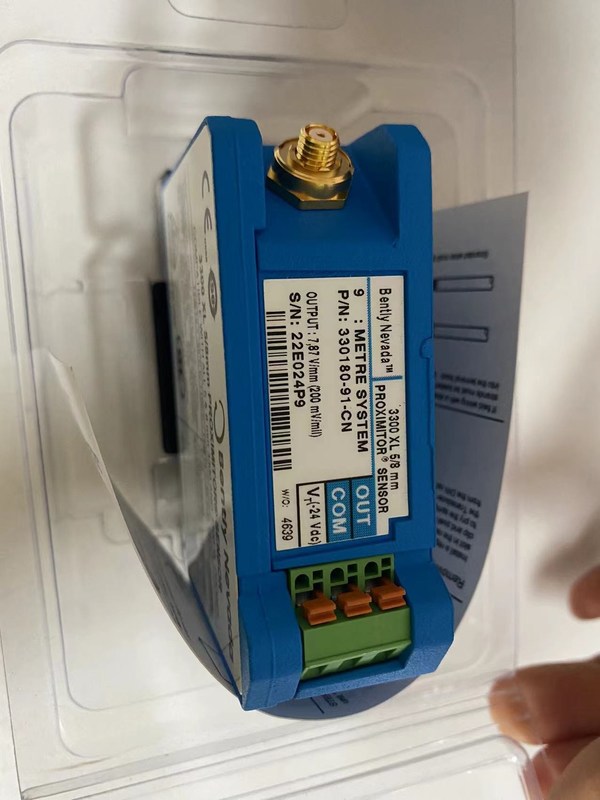

ROHS 3300 XL Bently Nevada Proximity Sensor 330180-91-CN
| Place of Origin | U.S.A |
| Brand Name | BENTLY NEVADA |
| Certification | ROHS |
| Model Number | 330180-91-CN |
Proximity Sensor 330180-91-00
,ROHS Bently Nevada Proximity Sensor
,3300 XL Proximity Sensor
| Estimated Lead Time | Usually ships in 1-10 working days |
|---|---|
| Manufacturer | Bently Nevada |
| Product No. | 330180-91-CN |
| Product Type | 3300 XL Proximity Sensor |
| Origin | Made in U.S.A |
| Certification | Can add on Certificate Of Origin (COO) |
| Total Length and Mounting | 91 = 9.0 metres (29.5 feet) system length, DIN mount |
| Agency Approval | CN = required |
| Proximitor® Sensor Input | Accepts one noncontacting 3300-series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable |
| Proximitor® Sensor Material | A308 aluminum |
| Operating Temperature | -51 °C to +100 °C (-60 °F to +212 °F) |
| Storage Temperature | -51 °C to +105 °C (-60 °F to +221 °F) |
| Weight | 0.23 Kg |
| Shipping Weight | 1 Kg |
The 3300 XL 8 mm Proximity Transducer System consists of:
- A 3300 XL 8 mm probe
- A 3300 XL extension cable
- A 3300 XL Proximitor® Sensor
The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor® and speed measurement applications.
The 3300 XL 8 mm system represents our most advanced performance in an eddy current proximity transducer system. The standard 3300 XL 8 mm 5 metre system is also 100% compliant with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level of performance while allowing complete interchangeability of probe, extension cable, and Proximitor® Sensor without the need for individual component matching or bench calibration.
