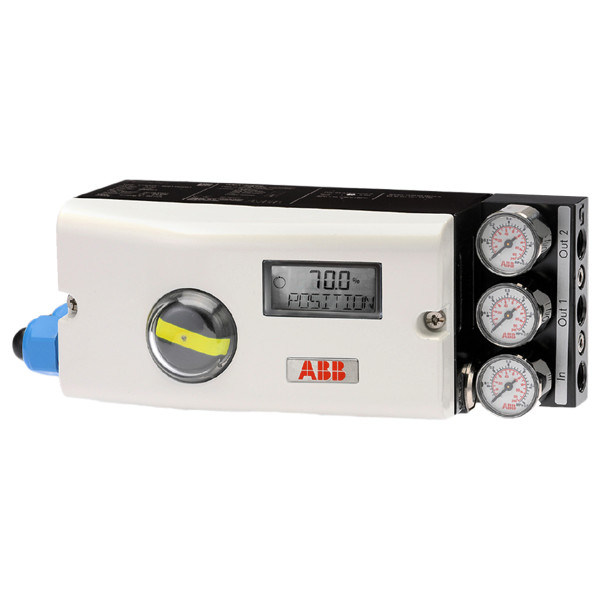

IP65 Aluminum TZIDC V18345 ABB Positioner Valve Electro Pneumatic
| Place of Origin | GERMANY |
| Brand Name | ABB |
| Certification | CE |
| Model Number | V18345-1011121001 |
IP65 v18345 abb positioner
,Pneumatic v18345 abb positioner
,IP65 v18345 tzidc electro pneumatic positioner
Part Number: V18345-1011121001
The TZID-C positioner is an intelligent, electronically configurable instrument with communication capabilities, designed for mounting to pneumatic actuators. Its compact design, modular construction, and exceptional cost-performance ratio make it stand out in industrial applications.
The microprocessor-controlled CPU serves as the functional core of the TZID-C positioner, handling all primary operations while mechanical and pneumatic components perform secondary functions. With a 20ms sampling rate and 4000-step A/D conversion for input and position feedback signals, it ensures rapid, high-precision signal processing. Power for the CPU is derived directly from the input signal.
The operating program includes an Autoadjust routine for automatic device adjustment during commissioning and an adaptation program for optimal position control until reaching the set point.
- Compact, intelligent design with electronic configurability
- High-precision signal processing (4000-step A/D conversion)
- Automatic adjustment and adaptation capabilities
- Robust aluminum case with IP65 (NEMA 4X) protection
- ATEX Ex II 2 G EEx ib II C T6 explosion protection
| Manufacturer | ABB |
|---|---|
| Model | V18345-Electro-Pneumatic Positioner TZIDC |
| Case Material | Aluminum IP65 (NEMA 4X) |
| Input/Communication | 4-20mA with LKS Adapter |
| Action Type | Single acting, fail safe |
| Connections | Electrical: 1/2-14 NPT; Air: 1/4-18 NPT |
| Analog Feedback | Plug-in module for analog position feedback (4-20mA, two-wire) |
| Mechanical Feedback | None |
| Weight | 1.7 kg (3.75 lb) |
| Shipping Weight | 3 kg |
| Lead Time | Usually ships in 1-10 working days |
