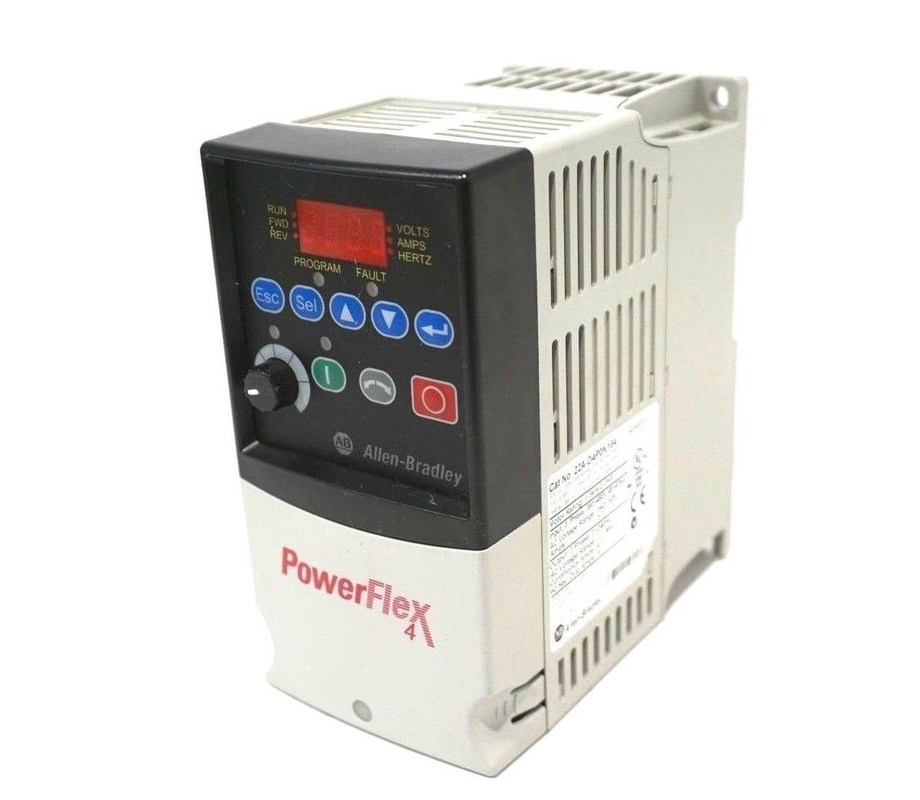

Variable Frequency Drive Allen Bradley Compactlogix PowerFlex 4 22A-D4P0N104
|
Variable Frequency Drive Allen Bradley Compactlogix PowerFlex 4 22A-D4P0N104
| Place of Origin | China |
| Brand Name | Allen Bradley |
| Model Number | 22A-D4P0N104 |
Product Details
Manufacturer:
Rockwell Automation / Allen-Bradley
Part Number:
22A-D4P0N104
Input Voltage::
380-480VAC
Input Phase::
3-Phase
Rated Power::
1.5kW (2.0 HP)
Enclosure Type:
IP20/UL (Open)
Rated Current Output::
4.0 A
Shipping Weight:
1.388 Kg
Highlight:
Variable Frequency Allen Bradley Compactlogix
,Allen Bradley Compactlogix 22A-D4P0N104
,allen bradley 22a d4p0n104
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
Variable Frequency Drive Allen Bradley Compactlogix PowerFlex 4 22A-D4P0N104
Quick Details
Manufacturer: Rockwell Automation / Allen-Bradley
Brand: Allen-Bradley
Part Number: 22A-D4P0N104
Model Type: PowerFlex 4 Variable Frequency Drive
Input Voltage: 380-480VAC
Input Phase: 3-Phase
Rated Current Output: 4.0 A
Rated Power: 1.5kW (2.0 HP)
Brand: Allen-Bradley
Part Number: 22A-D4P0N104
Model Type: PowerFlex 4 Variable Frequency Drive
Input Voltage: 380-480VAC
Input Phase: 3-Phase
Rated Current Output: 4.0 A
Rated Power: 1.5kW (2.0 HP)
Description
The 22A-D4P0N104 drive is an Adjustable Frequency AC drive from the PowerFlex 4 drive family. This electronic equipment is manufactured by Allen-Bradley to implement modulating speed control for use in a wide variety of applications such as fans, pumps, and simple lifting applications. The drive features Sensorless Vector control that allows for precise speed and torque control.
Specifications
| Electrical | Voltage Tolerance: | 120V, 200-240V, 380-480V, 460-600V: ±10% Frequency Tolerance: 48-63 Hz Displacement Power Factor: 0.98 across entire speed range Maximum Short Circuit Rating: 100,000 Amps symmetrical |
|---|---|---|
| Control Inputs | Digital SRC (Source) Mode: SNK (Sink) Mode: Analog 4-20 mA Analog: 0-10V DC Analog: External Pot: |
Input Current = 6 mA 18-24V = On, 0-6V = Off 0-6V = On, 18-24V = Off 250 ohm input impedance 100k ohm input impedance 1-10k ohms, 2 Watt minimum |
| Control Output - Programmable | Outputs (form C relay) | Resistive Rating Opto Outputs: Analog Outputs: Inductive Rating Opto Outputs: Analog Outputs: |
| Fuses and Circuit Breakers | Recommended Fuse Type: Recommended Circuit Breakers: |
UL Class J, CC, T or Type BS88; 600V (550V) or equivalent. HMCP circuit breaker or equivalent. |
| Protective Features | Motor Protection: Overcurrent: Control Ride Through: Faultless Power Ride Through: |
I²t Overload Protection, 150% for 60 sec., 200% for 3 sec. (provides Class 10 protection) 200% hardware limit, 300% instantaneous fault Minimum Ride Through is 0.5 sec. - typical value is 2 seconds 100 milliseconds |
| Environment | Altitude: Storage Temperature: Atmosphere: Relative Humidity: Shock (operating): Vibration (operating): |
1000 m (3300 ft.) maximum without derating -40 to 85°C (-40 to 185°F) Important: Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust. 0 to 95% non-condensing 15G peak for 11ms duration (±1.0ms) 1G peak, 5 to 2000 Hz |
Features
This drive features an integral RS-485 communication interface which allows for compatibility with PC tools. These PC tools can aid technicians in monitoring, troubleshooting, and programming the drive. These PC tools include Drive Explorer and DriveTools SP software.
The 22A-D4P0N104 drive features powerful motor speeds and a space-saving design, making it ideal for machine level speed control. This drive features a 3-phase input voltage of 380 to 480 Volts AC, a 4 Amps power rating, and overall power dissipation of approximately 70 Watts of power. Additionally, the 22A-D4P0N104 module produces an output of 2 Horsepower or 1.5 kW.
