1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
|
1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
| Place of Origin | Malaysia |
| Brand Name | ALLEN BRADLEY |
| Model Number | 1794-ACNR15 |
Product Details
Brand:
Allen-Bradley
Part Number/Catalog No.:
1794-ACNR15
Programming Software::
RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer
Communication Port::
Two (2) ControlNet BNC
Data Transfer Speed::
5 Mbps
Mounting:
DIN Rail
ControlNet Protocol::
V 1.25
ControlNet Cable::
3.31 Mm2 (12 AWG) Stranded Max 1.2 Mm (3/64 In.), Insulation, Max
Maximum Output Current Rating-Module:
5 Amps At 30 Degrees Celsius, 4 Amps At 60 Degrees Celsius
Voltage:
24 V DC
Highlight:
5 Mbps Allen Bradley Compactlogix
,V 1.25 Allen Bradley Compactlogix
,Allen Bradley 1794 acnr15
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
1794 ACNR15 FLEX I/O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
Product Overview
The Allen-Bradley 1794-ACNR15 is a Redundant ControlNet Adapter Module designed for industrial automation applications. This high-performance module from Rockwell Automation provides reliable communication and control capabilities.
Key Features
- Redundant ControlNet Adapter Module for enhanced reliability
- Compatible with RSLogix5, RSLogix500, RSLogix5000, and Studio 5000 Logix Designer programming software
- Two ControlNet BNC communication ports
- 5 Mbps data transfer speed
- Comprehensive status indicators (Comm A/B and I/O status)
- DIN Rail mounting for easy installation
- ControlNet Protocol Version 1.25
Technical Specifications
| Specification | Value |
|---|---|
| Power Dissipation | 3.4W maximum @ 19.2V dc |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Surrounding Temperature | 55°C (131°F) max |
| Vibration | IEC 60068-2-6 (Test Fc, Operating): 5 g @ 10-500 Hz |
| Thermal Dissipation | 15.7 BTU/hr @ 19.2V dc |
| Voltage | 24V DC |
| Input Voltage Range | 19.2-31.2V DC |
| Flexbus Output Current | 640 mA max |
| Isolation Voltage | 850V DC |
| Inrush Current | 23A for 2ms |
| Communication Rate | 5M bps |
| Current Draw | 450mA max |
| Part Number | 1794-ACNR15 |
| UPC | 10612598180599 |
Related Products
Our Advantages
- Competitive pricing with fast delivery
- Extensive industry experience
- Highly trained technical staff
- Own warehouse facilities for quick availability
- Strong manufacturer relationships
- Customized service solutions
- Cost-effective global shipping options
Frequently Asked Questions
Q: Are your products new and original?
A: Yes, all products are brand new and original manufacturer items.
Q: What is the warranty period?
A: We provide a one-year warranty on this product.
Q: Can you provide product certificates?
A: Certification availability depends on the specific product. Please consult our sales team for details.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EUR, USD, and RMB currencies.
Q: What are your shipping options?
A: We ship worldwide via DHL, UPS, FedEx, TNT and other major carriers.

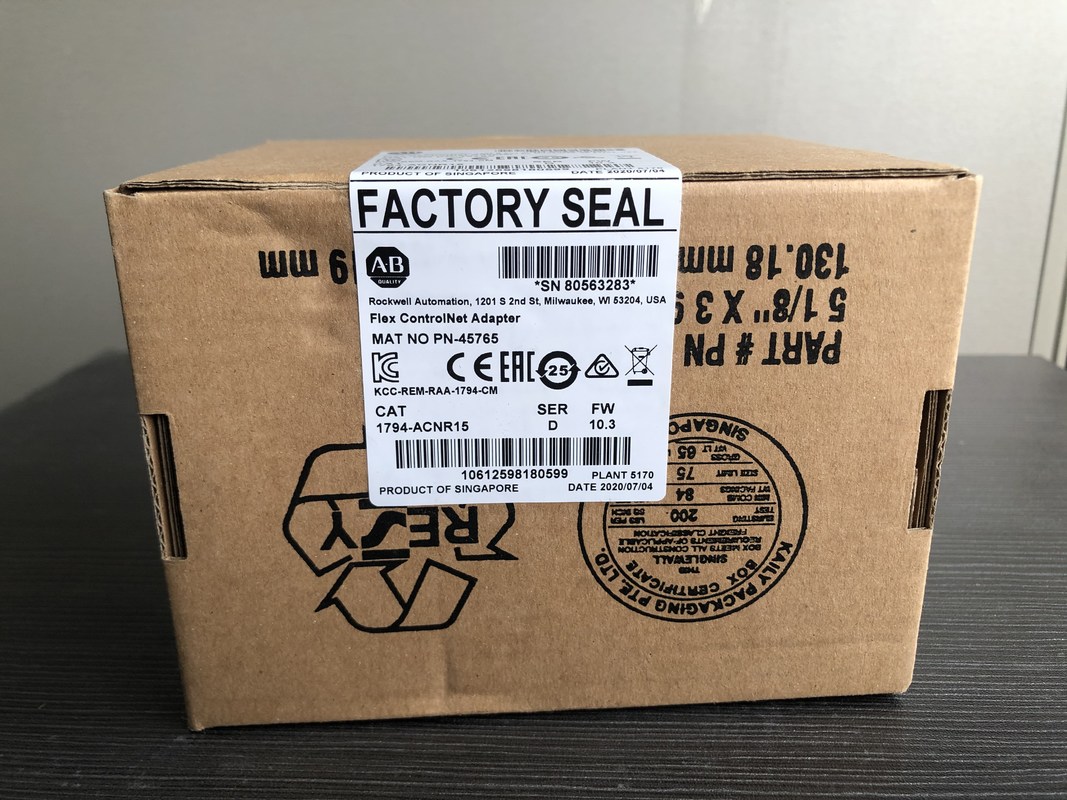

Product Images
