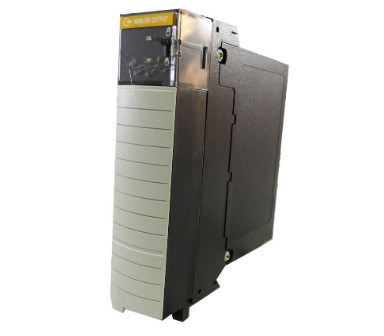

8 Channel Allen Bradley Compactlogix 1756 OF8 I O Analog Output Module
|
8 Channel Allen Bradley Compactlogix 1756 OF8 I O Analog Output Module
| Place of Origin | USA |
| Brand Name | ALLEN BRADLEY |
| Model Number | 1756-OF8 |
Product Details
Brand:
Allen-Bradley
Part Number/Catalog No.:
1756-OF8
Series:
ControlLogix
Module Type:
Analog Output Module
Outputs:
8 Current-Voltage
Backplane Current (5Volts):
140 Milliamps
Backplane Current (24 Volts):
210 Milliamps
Removeable Terminal Block(s):
1756-TBNH, 1756-TBSH
Isolation Voltage:
50 Volts Continuous
Highlight:
8 Channel Allen Bradley Compactlogix
,140 milliamps Allen Bradley Compactlogix
,1756 OF8 Analog Output Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
1756-OF8 Allen Bradley ControlLogix Analog Output Module with 8 Current-Voltage Outputs
The 1756-OF8 is a powerful Allen-Bradley ControlLogix Analog Output module designed for optimal performance in industrial applications. Featuring 8 voltage-current (V/A) analog outputs with short-circuit protection, this module delivers reliable operation in demanding environments.
Key Specifications
- Output rating: ±10 Volts or 0-20 mA
- Signal resolution: 15-bits across 21 mA or 10.4 Volts
- Backplane current: 210 mA at 24V DC, 150 mA at 5.1V DC
- Maximum power consumption: 5.8 Watts
- Over-voltage protection: 24V DC rated
- Short-circuit protection: Electronically limited to ≤21 mA
- Voltage-current settling time: 2 milliseconds
- Calibration accuracy: 0.05% (recommended annual calibration)
Performance Characteristics
- Scan time: 8 ms (integer), 12 ms (floating point)
- Module error: 0.15% (voltage mode), 0.3% (current mode)
- Insulation voltage: 250V
- Reinforced insulation: 1350V AC tested for 2 seconds
- Temperature codes: T4A (North America), T4 (IEC/ATEX)
- Shock rating: 30G
- Vibration rating: 2G (10-500 Hz)
- Operating temperature: 0°C to 60°C
